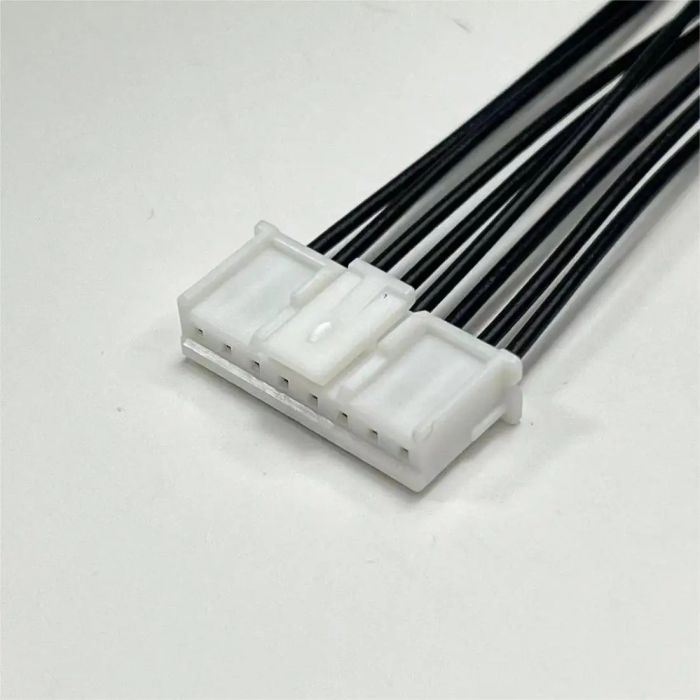

XAP-08V-1 Wire harness, JST XAP 2.50mm Pitch OTS Cable,8P，Off The Shelf, Fast Delivery

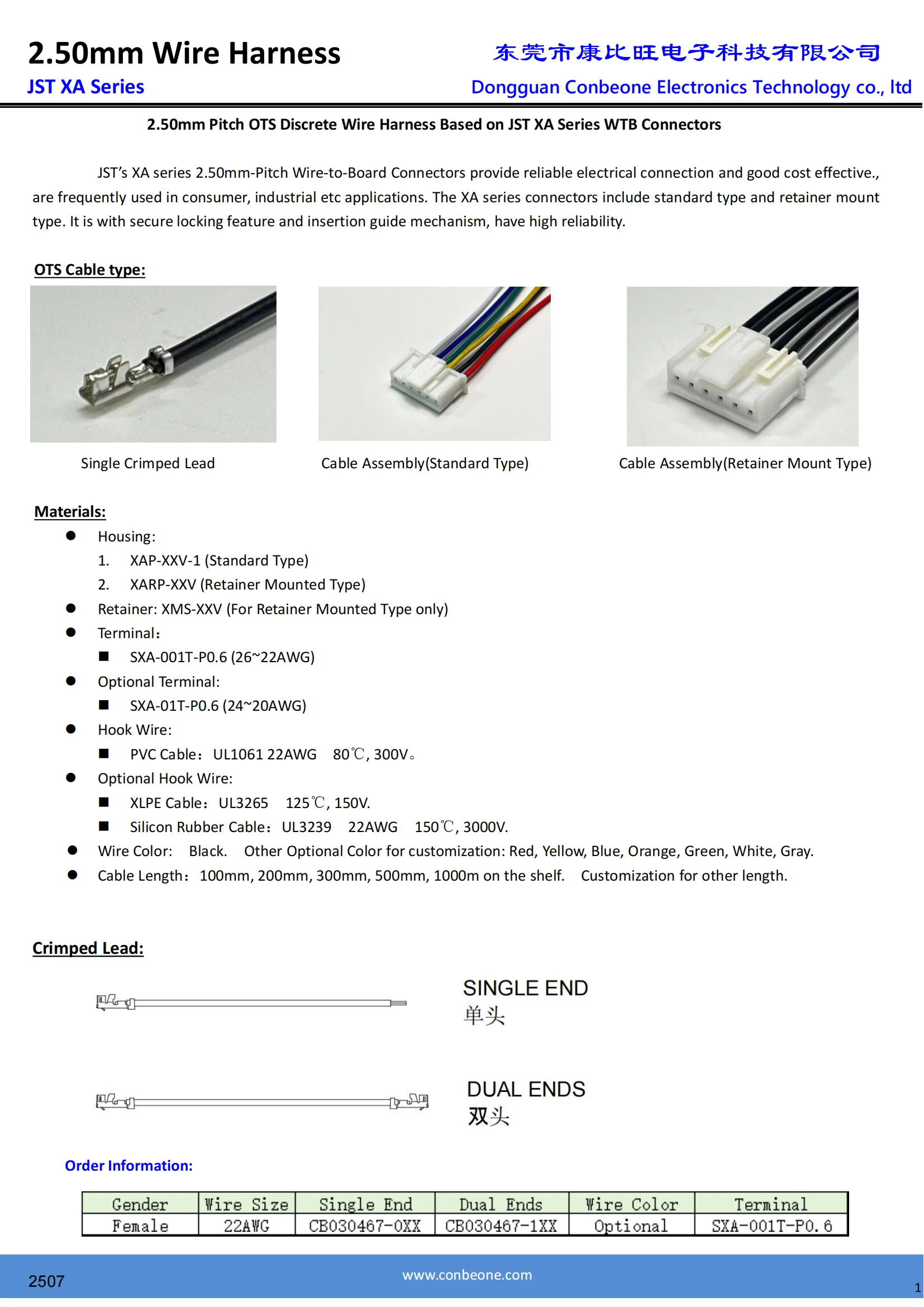

1.  Materials:

Housing: XAP-08V-1,  8P

TERMINAL: SXA-001T-P0.6

HOOK WIRE: UL1061, 22AWG, 80℃, 300V

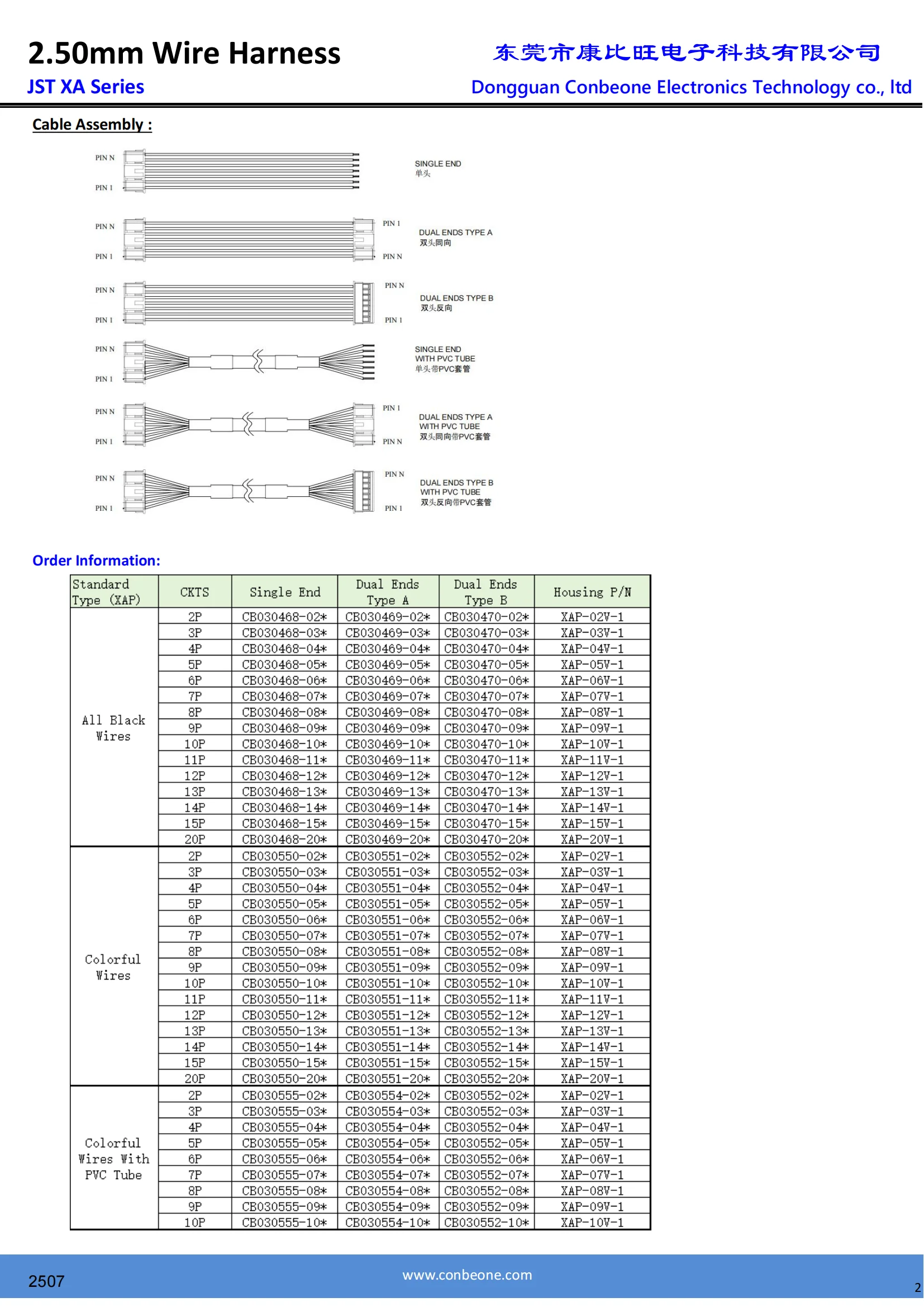

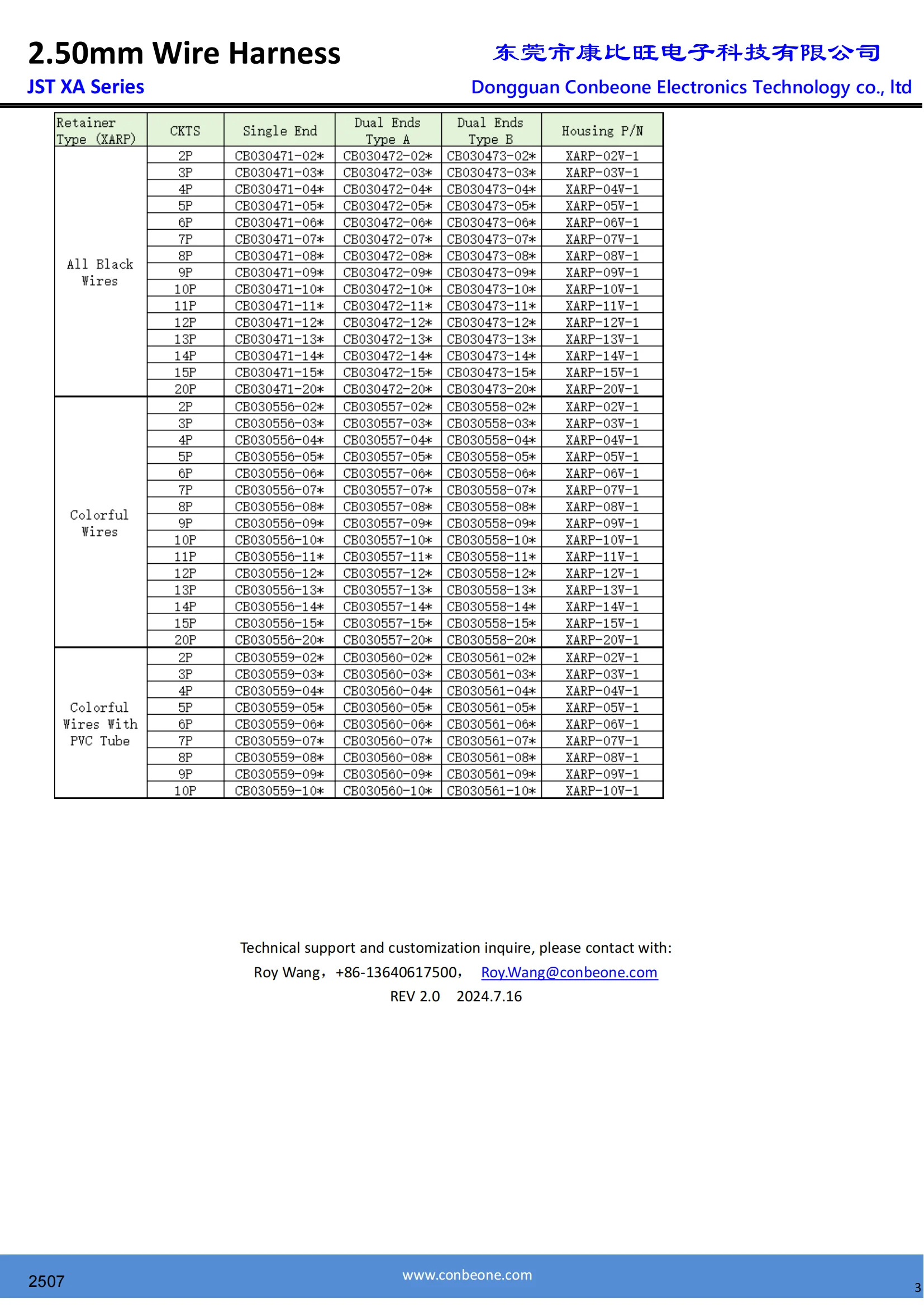

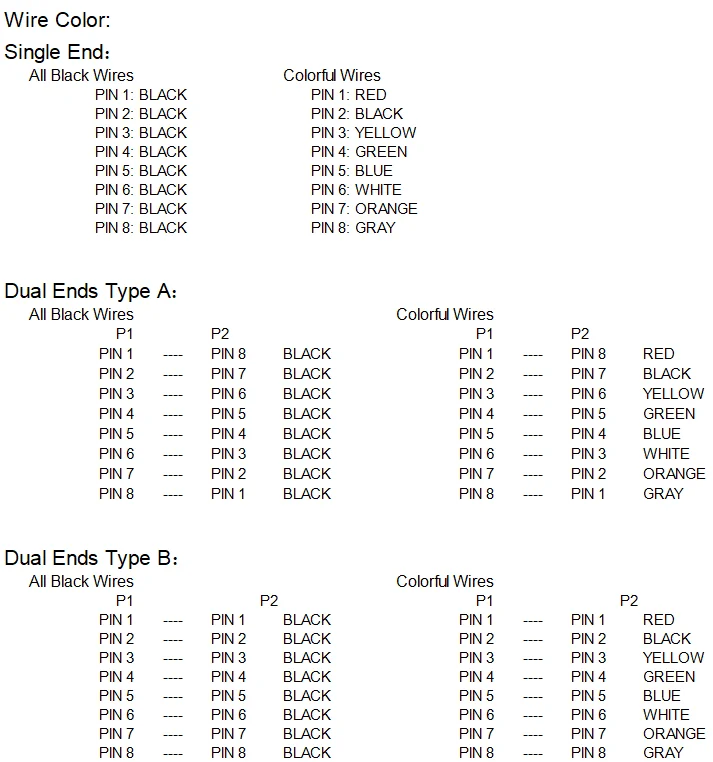

2. Wiring Scheme and Color：

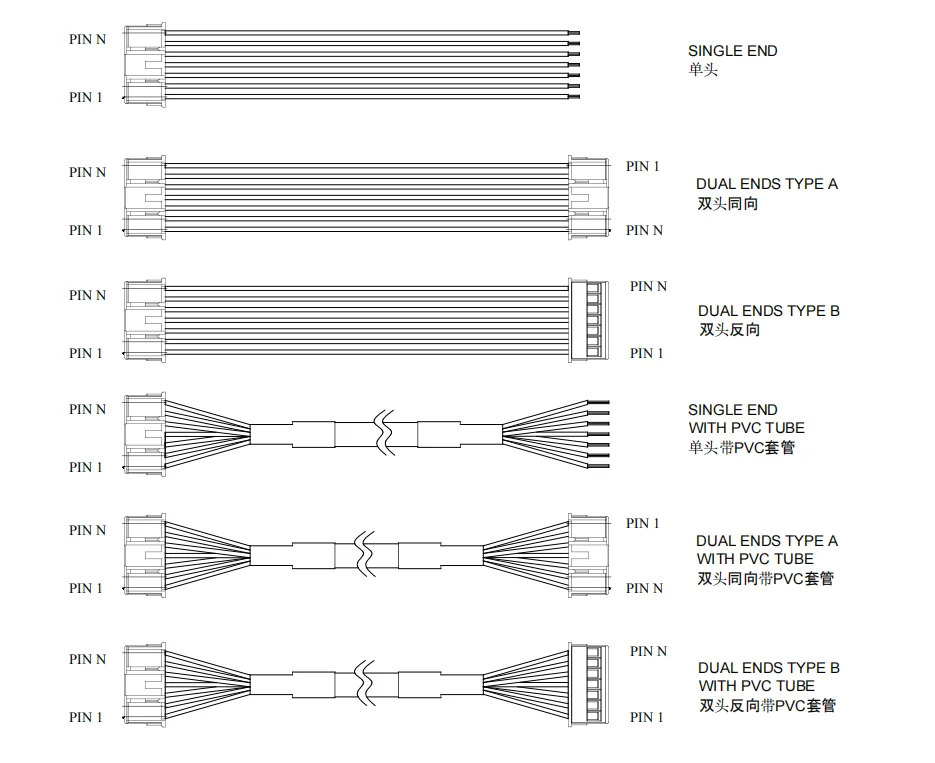

TYPE BSE:

Housing:  XAP-XXV-1

Color Option:  All Black Wires

Termination:  Single End

Conbeone P/N:  CB030468

TYPE BDA:

Housing:  XAP-XXV-1

Color Option:  All Black Wires

Termination:  Dual Ends Type A

Conbeone P/N:  CB030469

TYPE BDB:

Housing:  XAP-XXV-1

Color Option:  All Black Wires

Termination:  Dual Ends Type B

Conbeone P/N:  CB030470

TYPE CSE:

Housing:  XAP-XXV-1

Color Option:  Colorful Wires

Termination:  Single End

Conbeone P/N:  CB030550

TYPE CDA:

Housing:  XAP-XXV-1

Color Option:  Colorful Wires

Termination:  Dual Ends Type A

Conbeone P/N:  CB030551

TYPE CDB:

Housing:  XAP-XXV-1

Color Option:  Colorful Wires

Termination:  Dual Ends Type B

Conbeone P/N:  CB030552

TYPE CSEP:

Housing:  XAP-XXV-1

Color Option:  Colorful Wires

Termination:  Single End

Remark:  Covered with PVC Tube

Conbeone P/N:  CB030553

TYPE CDAP:

Housing:  XAP-XXV-1

Color Option:  Colorful Wires

Termination:  Dual Ends Type A

Remark:  Covered with PVC Tube

Conbeone P/N:  CB030554

TYPE CDBP:

Housing:  XAP-XXV-1

Color Option:  Colorful Wires

Termination:  Dual Ends Type B

Remark:  Covered with PVC Tube

Conbeone P/N:  CB030555

3. More Information：

If you have any question or want to customize cable assembly.

Please contact our sales engineer:

eMail: roy.wang@conbeone.com

(CAD Drawing available on our website )
