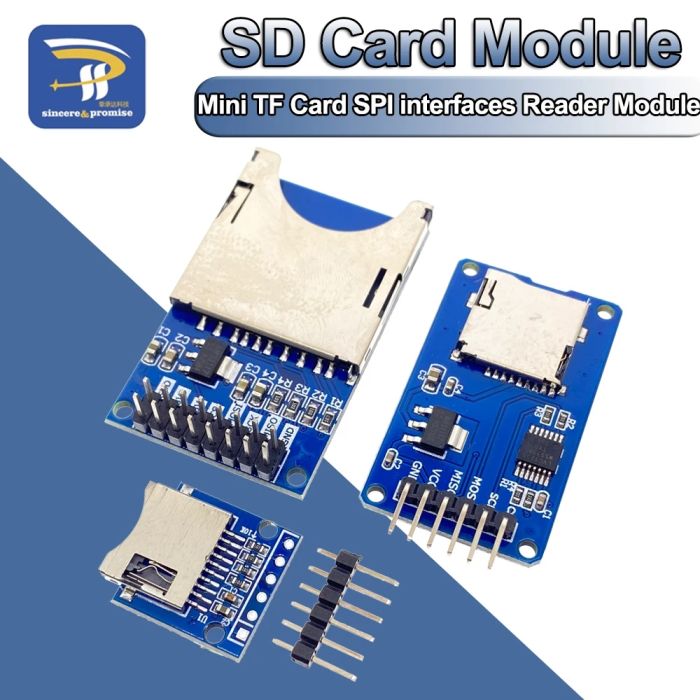

Micro SD Card Mini TF Card Reader Module SPI interfaces with level converter chip 5V/3.3V For Arduino DIY KIT
As low as
$1.16
Regular Price
$3.42
In stock
Only %1 left
SKU
1005006248599786
TF CardElectronics Description :
The module (MicroSD Card Adapter) is a Micro SD card reader module, through the file system and the SPI interface driver, MCU to complete the file system to read and write MicroSD card. Users can directly use IDE comes with an SD card to complete the library card initialization and read-write
Module features are as follows:
1. Supports Micro SD cards, Micro SDHC card (high speed card)
2 level conversion circuit board that interfaces level for 5V or 3.3V
3 power supply is 4.5V ~ 5.5V, 3.3V voltage regulator circuit board
4 is a standard communication interface SPI interface
5.4 M2 screw positioning holes for easy installation
Control Interface: A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is the power supply, MISO, MOSI, SCK is SPI bus, CS is the chip select signal pin;
3.3V voltage regulator circuit: LDO regulator output is 3.3V level converter chip, Micro SD card supply;
Level conversion circuit: Micro SD card into the direction of the signal is converted to 3.3V, MicroSD card interfaces to control the direction of the MISO signal is also converted into 3.3V, general AVR microcontroller system can read the signal;
Micro SD card connector: a self-bomb deck, easy card insertion.
Positioning holes: 4 M2 screws positioning hole diameter is 2.2mm, the positioning of the module is easy to install, to achieve inter-module combination;
SD Card Electronics Description :
1.This SD Card module can make your SD application more easier and simple.
2.It is easily interfaced as a peripheral to your sensor shield module.
3.Through programming, you can read and write to the SD card using .
A.Can be used for SD Card more eaisly, such as for MP3 Player, MCU/ARM system control.
B. All SD SPI pins output, MOSI, SCK, MISO and CS.
C. Support 5V/3.3V input
MINI SD CardElectronics Description :
100% brand new and high quality
Onboard pop-up MINI SD card interface
The related pins are already done elicit and annotations
Board size: 17.9 (mm) x17.9 (mm)
