JGINYUE AMD AM4 ITX Motherboard supports Ryzen R3 R5 R7 1/2/3/4/5 series CPU DDR4 RAM Desktop PC PCI-E 3.0 B450I-PLUS ARGB MB
As low as
$85.85
Regular Price
$209.40
In stock
Only %1 left
SKU
1005007227422309

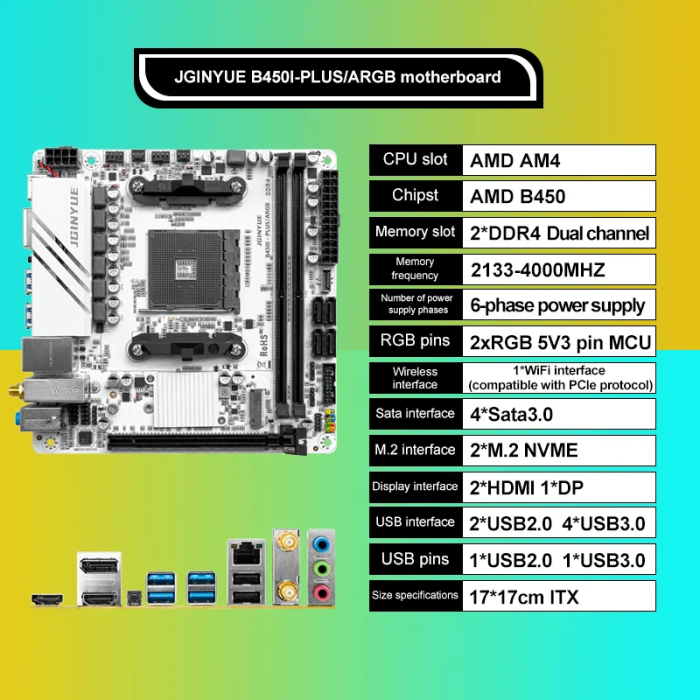

JGINYUE B450I-PLUS/ARGB motherboard
Supports AMD AM4 1000/2000/3000/4000/5000 series processors
Supports dual channel 2xDDR4 memory slots with a maximum capacity of 32GB
Memory frequency: 2133/2400/2666/3000/3200/3600/4000MHz (supports XMP technology/actual situation may vary depending on different CPU and memory configurations)
Display interface: 2xHDMI, 1xDP interface
4xSATA3.0, 1xM.2 NVME protocol 3.0 x4 interface (front), 1xM.2 NVME protocol 2.0 x4 interface (back)
Rear 4xUSB 3.0, 2xUSB 2.0; Front end 1xUSB 3.0, 1xUSB 2.0
1xPCI Express x16 slot 3.0
Supports dual channel 2xDDR4 memory slots with a maximum capacity of 32GB
Memory frequency: 2133/2400/2666/3000/3200/3600/4000MHz (supports XMP technology/actual situation may vary depending on different CPU and memory configurations)
Display interface: 2xHDMI, 1xDP interface
4xSATA3.0, 1xM.2 NVME protocol 3.0 x4 interface (front), 1xM.2 NVME protocol 2.0 x4 interface (back)
Rear 4xUSB 3.0, 2xUSB 2.0; Front end 1xUSB 3.0, 1xUSB 2.0
1xPCI Express x16 slot 3.0
Motherboard model
:B450I-PLUS/ARGB
:B450I-PLUS/ARGB
Chipset
:AMD B450 chipset
:AMD B450 chipset
CPU pins
:Supports AMD AM4 1000/2000/3000/4000/5000 series processors
:Supports AMD AM4 1000/2000/3000/4000/5000 series processors
Memory slot
:2xDDR4 memory slots
:2xDDR4 memory slots
Memory capacity
:Maximum support 32GB
:Maximum support 32GB
Memory frequency
:Dual channel 2133/2400/2666/3000/3200/3600/4000MHz (supports XMP technology/actual situation may vary depending on different CPU and memory configurations)
:Dual channel 2133/2400/2666/3000/3200/3600/4000MHz (supports XMP technology/actual situation may vary depending on different CPU and memory configurations)
Display interface
:2xHDMI，1xDP
:2xHDMI，1xDP
Storage interface
:4xSATA3.0 6Gbps； 1xM.2 nvme protocol 3.0 x4 (front); 1xM.2 nvme protocol 2.0 x4 (back)
:4xSATA3.0 6Gbps； 1xM.2 nvme protocol 3.0 x4 (front); 1xM.2 nvme protocol 2.0 x4 (back)
USB interface
:Rear 4xUSB 3.0, 2xUSB 2.0; Front end 1xUSB 3.0, 1xUSB 2.0
:Rear 4xUSB 3.0, 2xUSB 2.0; Front end 1xUSB 3.0, 1xUSB 2.0
PCIe interface
:1xPCI Express x16 slot 3.0
:1xPCI Express x16 slot 3.0
Wireless interface
:1xWiFi interface (compatible with PCIe protocol)
:1xWiFi interface (compatible with PCIe protocol)
Onboard sound card
:Realtek ALC897
:Realtek ALC897
Onboard network card
:RTL8125BG
:RTL8125BG
Power socket
:Mainboard powered by 24 pins, CPU powered by 8 pins
:Mainboard powered by 24 pins, CPU powered by 8 pins
Fan pin
:2x4 needles 2x3 needles
:2x4 needles 2x3 needles
RGB pin
:2xRGB 5V3 pin MCU control chip
:2xRGB 5V3 pin MCU control chip
Number of power supply phases
:6-phase power supply
:6-phase power supply
Size specifications
:17cmx17cm ITX
:17cmx17cm ITX
Other interfaces
:1 BIOS recovery button, 1 front Type-e 5G interface
:1 BIOS recovery button, 1 front Type-e 5G interface
