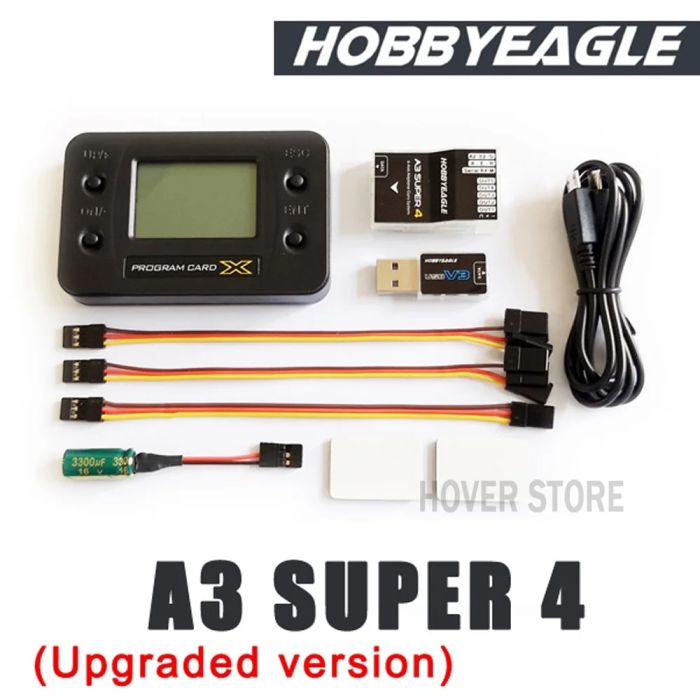

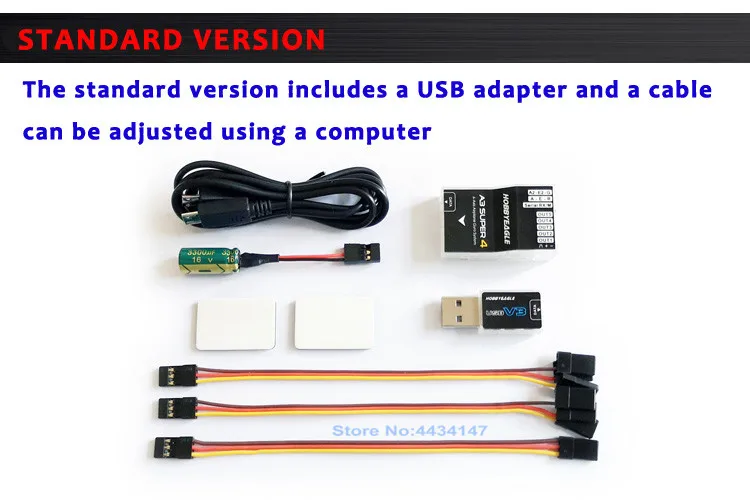

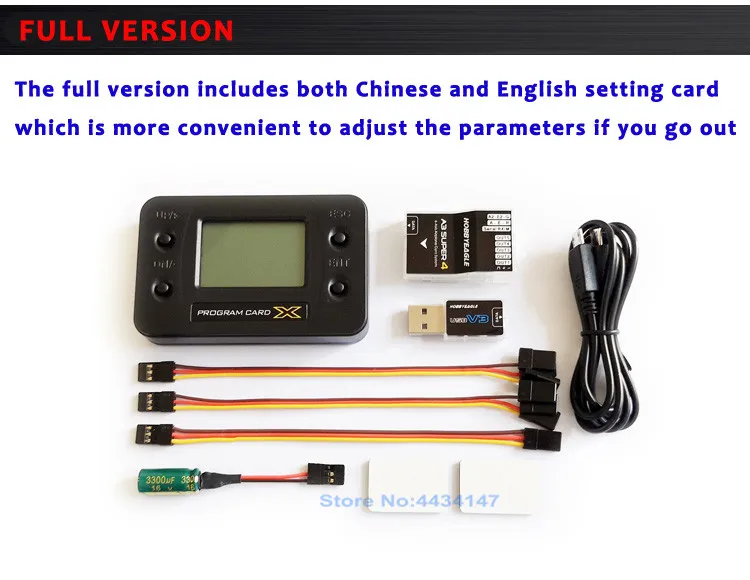

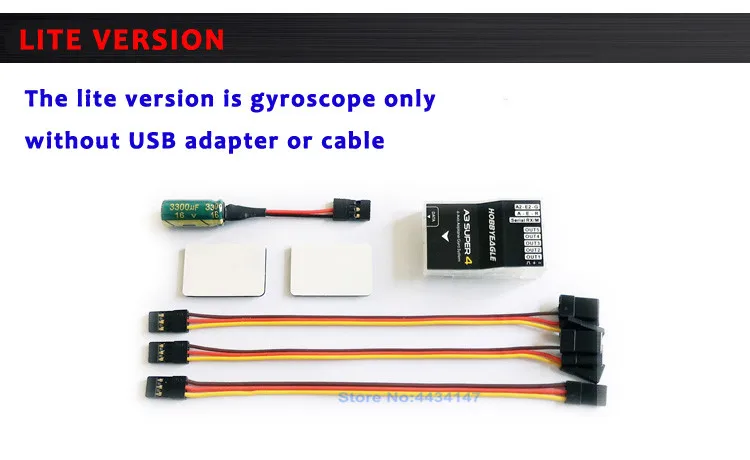

HobbyEagle A3 Super4 A3S4 Fixed Wing 6-axis Airplane Gyro stabilizer Flight Control balancer Programming card for RC Wing
A3 Super 4 is a high-performance and functional 6-axis gyro and stabilizer designed for R/C airplanes. The hardware has been improved yet again based on the successful previous generation. Multi-protocol serial digital receiver support and customizable output channels added to make the gyro more user-friendly and reliable.
32-bit MCU, high-precision 6-axis MEMS sensor, improved hardware and stable firmware provide more reliable performance.
6 flight modes and 6-position switching, including GYRO-OFF, NORMAL, LOCK, ANGLE, LEVEL and HOVER modes.
PWM, PPM and multi-protocal serial digital receiver supported.
Customizable output channels and 2 pass-through auxiliary channels.
Dual aileron and dual elevator system, flying-wing (delta-wing) and V-tail supported.
Remote master gain supported.
Firmware upgradable and Programming Card supported.
Specification：
Main Controller:32-bit MCU
Sensor:High-precision MEMS 6-axis sensor
Gyroscope Scale Range:±2000dps
Accelerometer Scale Range:±4g
PWM800 ~ 2220uS, Neutral 1500/1520uS, 50Hz ~ 333Hz
Input Voltage:DC 4.8V ~ 8.4V
Operating Temperature:-10℃ ~ 50℃
Size:43×27×14mm (L×W×H)
Weight:10g (excluding wires)
Serial Receiver Protocols Supported
PPM Receiver
Futaba S.Bus (compatible with FrSky SBUS, RadioLink SBUS and WFLY WBUS)
Spektrum DSM/DSMX 1024 Satellite Receiver
Spektrum DSM/DSMX 2048 Satellite Receiver
Spektrum SRXL
Multiplex SRXL / JR XBUS Mode B
Graupner SUMD
FlySky iBus
Standard PWM Receiver Connection

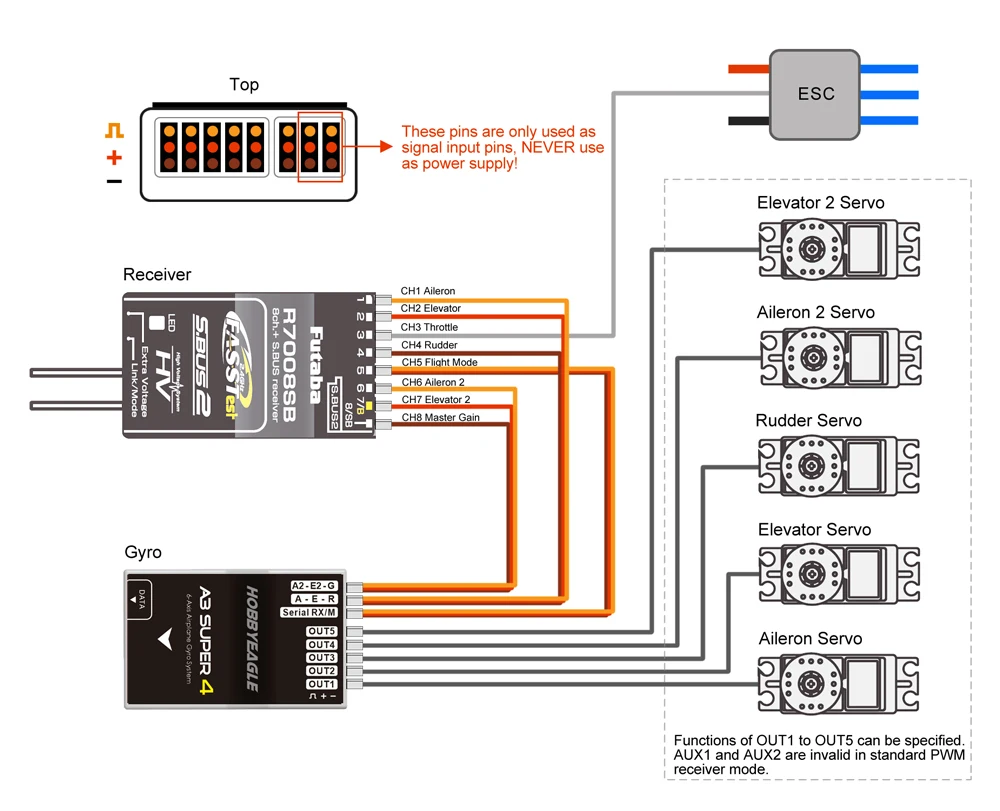

When using a standard PWM receiver, A3 Super 4 has 7 input channels in which at least one channel should be connected to the receiver in Aileron (A), Elevator (E) and Rudder (R), or the gyro will enter the receiver timeout mode (Red Slow Flashing). [Serial RX/M] is used for flight mode switching, use a 3-position switch of the transmitter to switch the flight mode during flight. [G] is used for remote master gain control, a slide lever or a switch of the transmitter can be used to tune or change the master gain during flight. Connect the ESC or the throttle servo to the receiver directly without passing through the gyro.
Single-line Receiver Connection

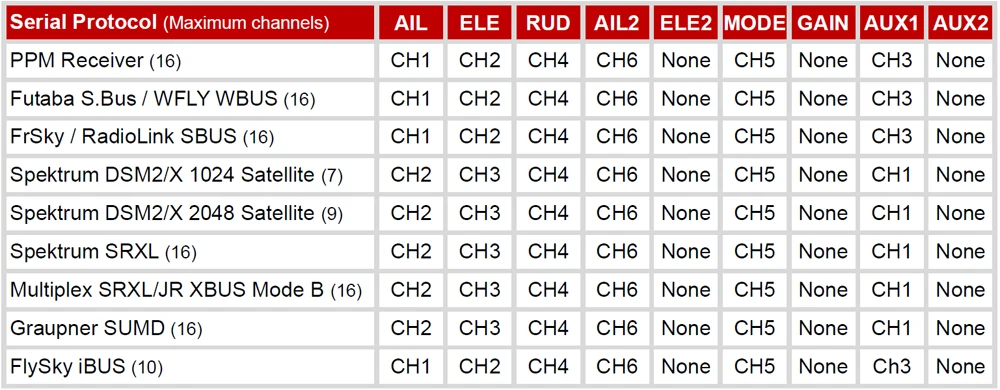

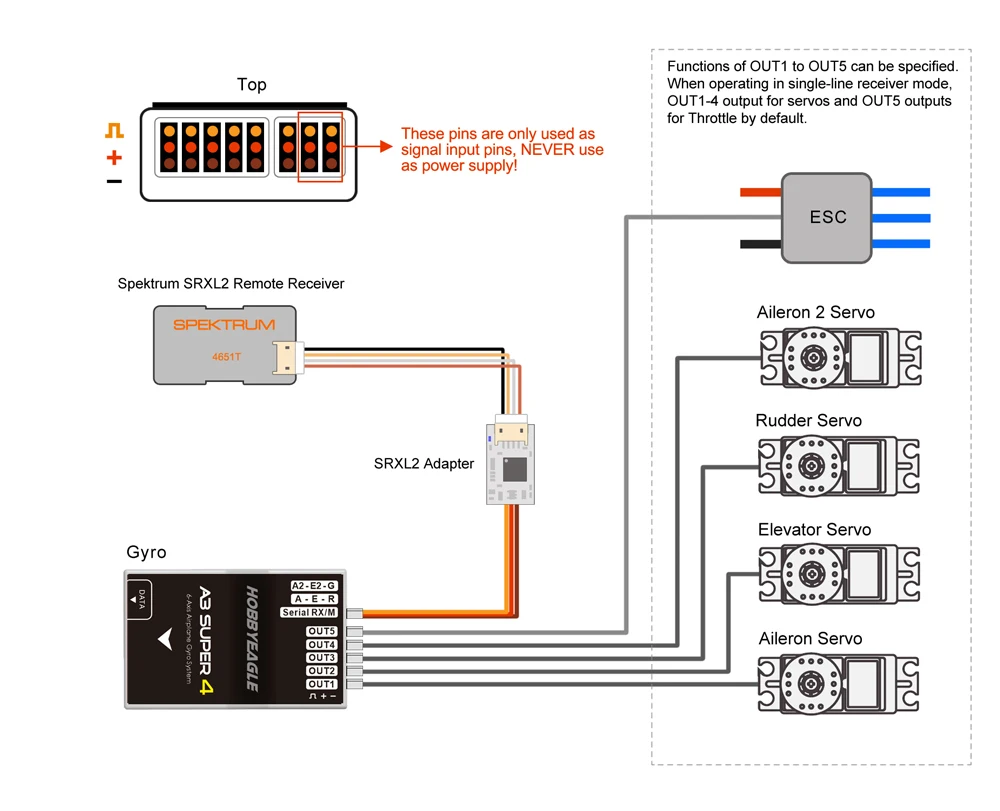

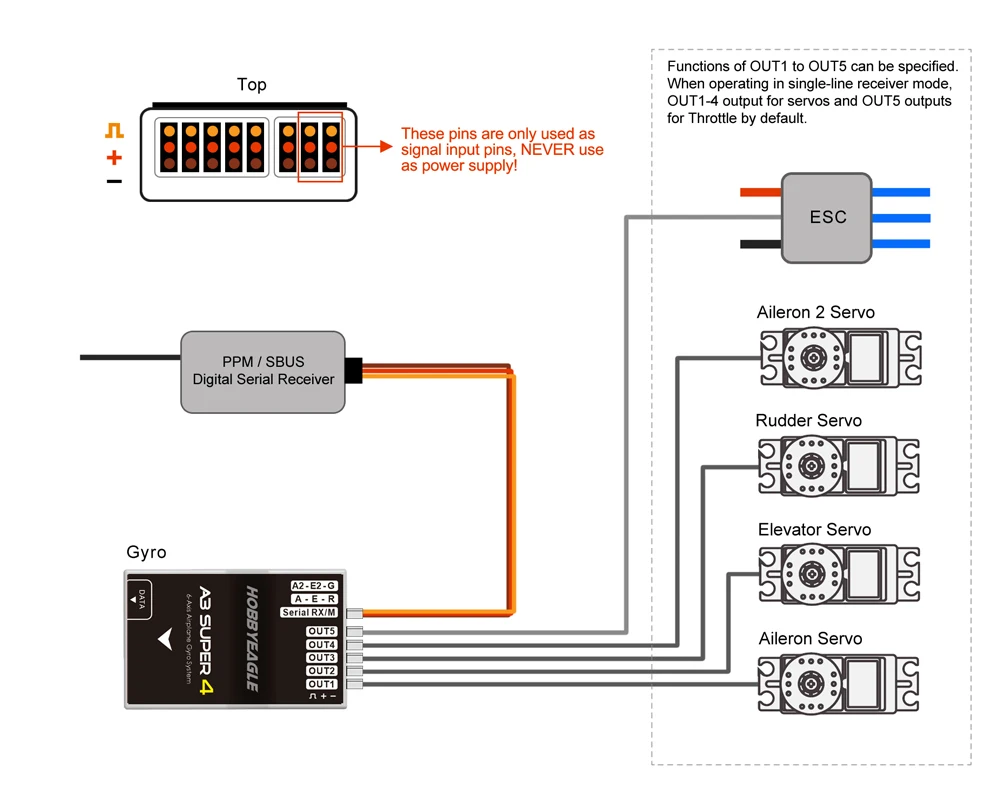

A3 Super 4 supports PPM and multi-protocol digital serial receivers which allows you to connect the receiver to the gyro with one single wire on the slot [Serial RX/M]. When using single-line receivers, 2 auxiliary pass-through channels (AUX1 and AUX2) are available which can be used to output the expected channels of the receiver directly. By default, AUX1 is always assigned to Throttle and applies to OUT5, while AUX2 is disabled. Depending upon the receiver type selected, The gyro uses the preset channel assignment to recognize the channels from the receiver. Refer to the table below and check if your radio transmits the channels in the correct order. After each time you have changed the receiver type the current channel settings will be reset to the default. Choose "None" for those channels you do not use.
