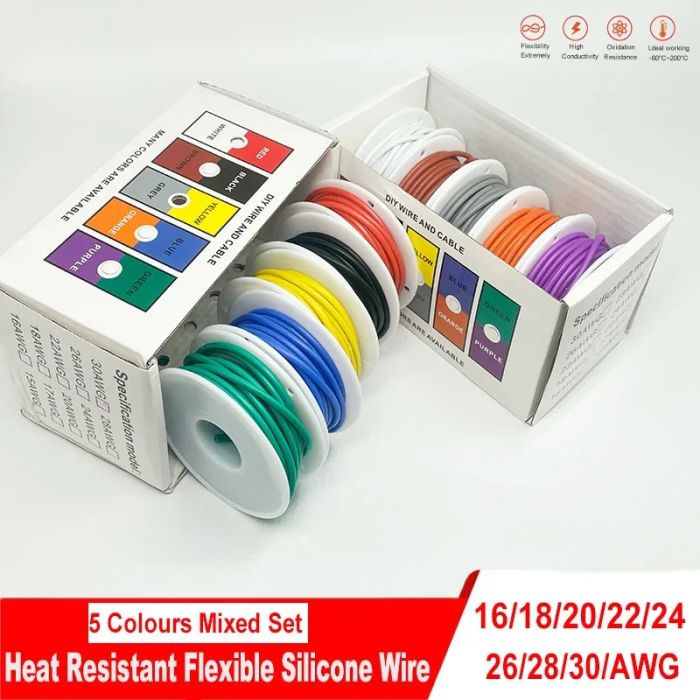

Heat Resistant Flexible Silicone Wire 30AWG 28AWG 26AWG 24 22 20AWG 18AWG 16AWG Stranded Tinned Copper Wire, 5 Colour Mixed Set

118 Reviews Add Your Review

As low as $5.67

In stock

Only %1 left

SKU

1005007391168450

Details

Product Description:

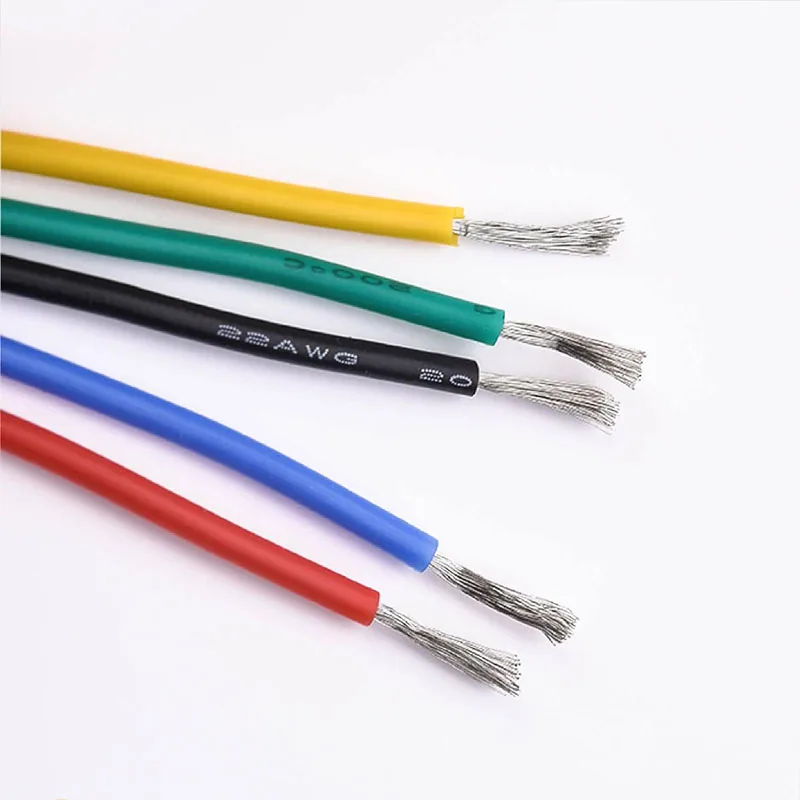

Featuring silicone insulation and a fine stranded core, this wire is very soft and easy to strip and solder. Ideal for applications where the wire will bend, such as test cables. Can be terminated with pins and heat shrink tubing for breadboard jumpers.

Super soft 150 strands of 0.08 mm tinned copper wire - prevents corrosion and is easier to solder.

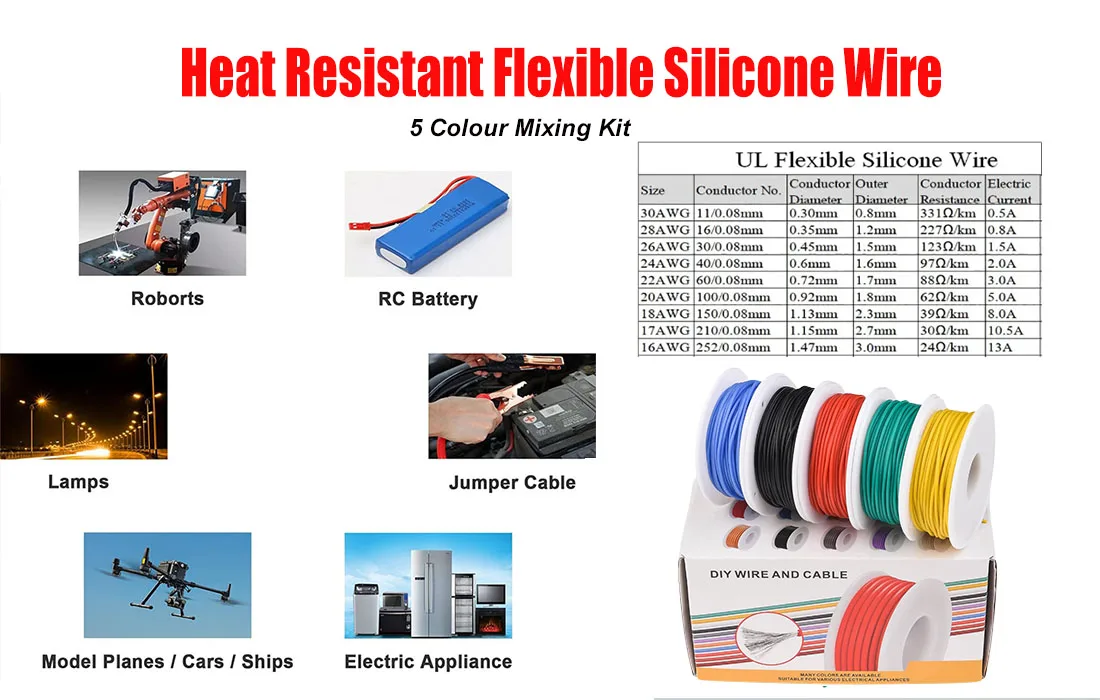

16AWG: OD: 3.0mm Core diameter: 252/0.08mm, current withstand 12A

18AWG: OD: 2.3mm Core diameter: 150/0.08mm, withstand current 7.5A

20AWG: OD: 1.8mm Core diameter: 100/0.08mm, withstand current 5A

22AWG: OD: 1.7mm Core diameter: 60/0.08mm, withstand current 3A

24AWG: OD: 1.6mm Core diameter: 40/0.08mm, withstand current 2A

26AWG: OD: 1.5mm Core diameter: 30/0.08mm, withstand current 1.5A

28AWG: OD: 1.2mm Core diameter: 16/0.08mm, withstand current 0.8A

30AWG: OD: 0.8mm Core diameter: 11/0.08mm, withstand current 0.55A

These wires are great, and due to the thickness of the core and the heat resistance of the silicone insulation, are ideal for use in PC-related rewiring or wire extension work.

These are high quality silicone insulated wires. This is important because they will not burn during soldering as PVC insulation does. These wires are perfect for soldering prototype boards - flexible, low impedance and won't burn the insulation. Not a bad deal either. Do not confuse this set with products that have PVC insulation. This is important because they won't burn during the soldering process like PVC insulation does.

Wide range of high and low temperature resistance

High temperature resistant silicone wires. Temperature: -60 degree Celsius +200 degree Celsius, low temperature resistant, -60 degree Celsius in extreme cold environments.

Conductor: High purity oxygen free tinned copper, rated at 600V.

Wide range of applications: electrical and electronic equipment, transport, aeromodelling, instruments, LED lighting, household appliances, office equipment, etc.
