Gigabit Industrial Ethernet Switch PoE/Non-PoE 1000Mbps Unmanaged Network Switches 5 Port 10 Ports IP40 -40 to 80°C DIN Rail
Product overview

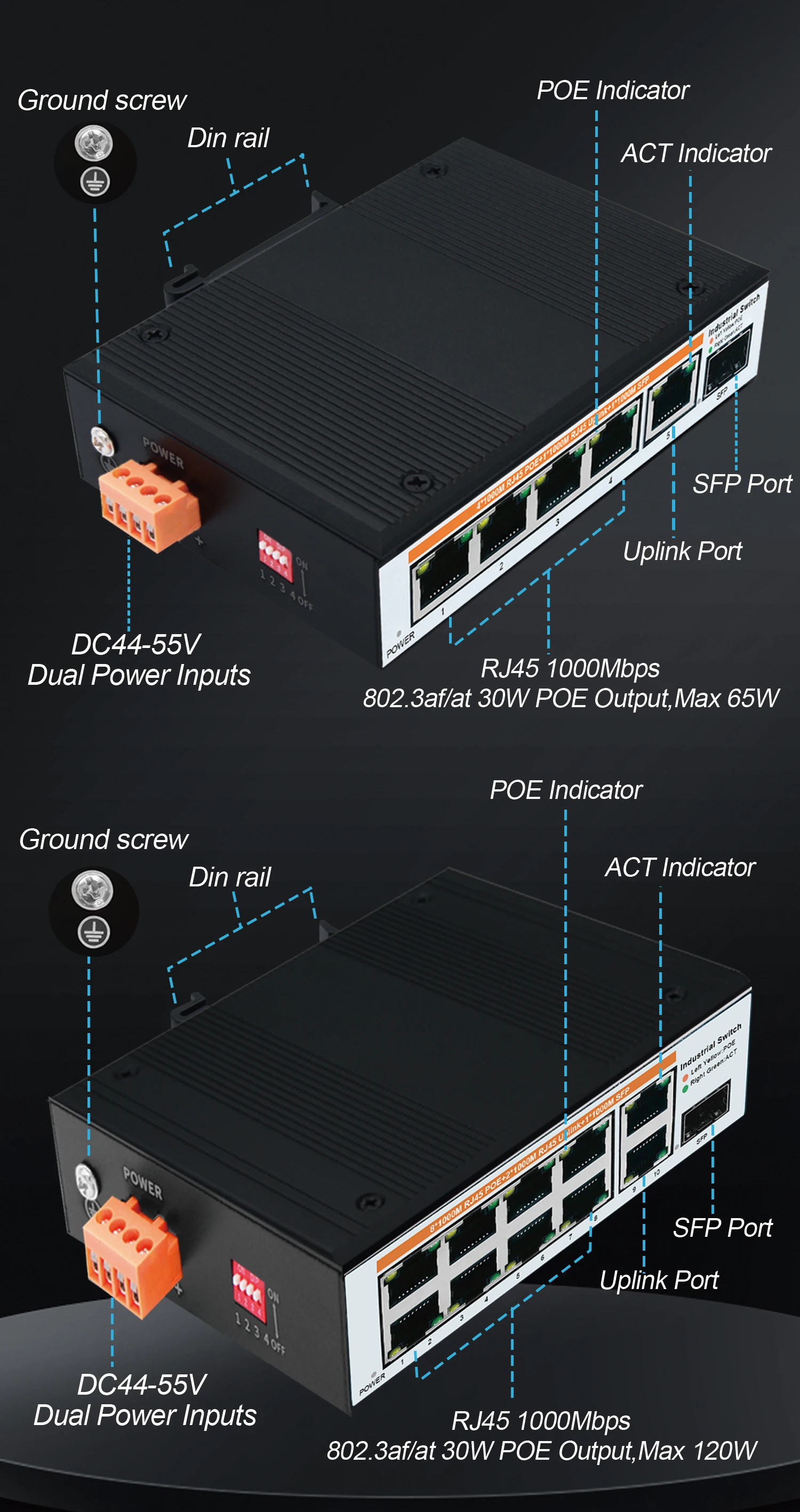

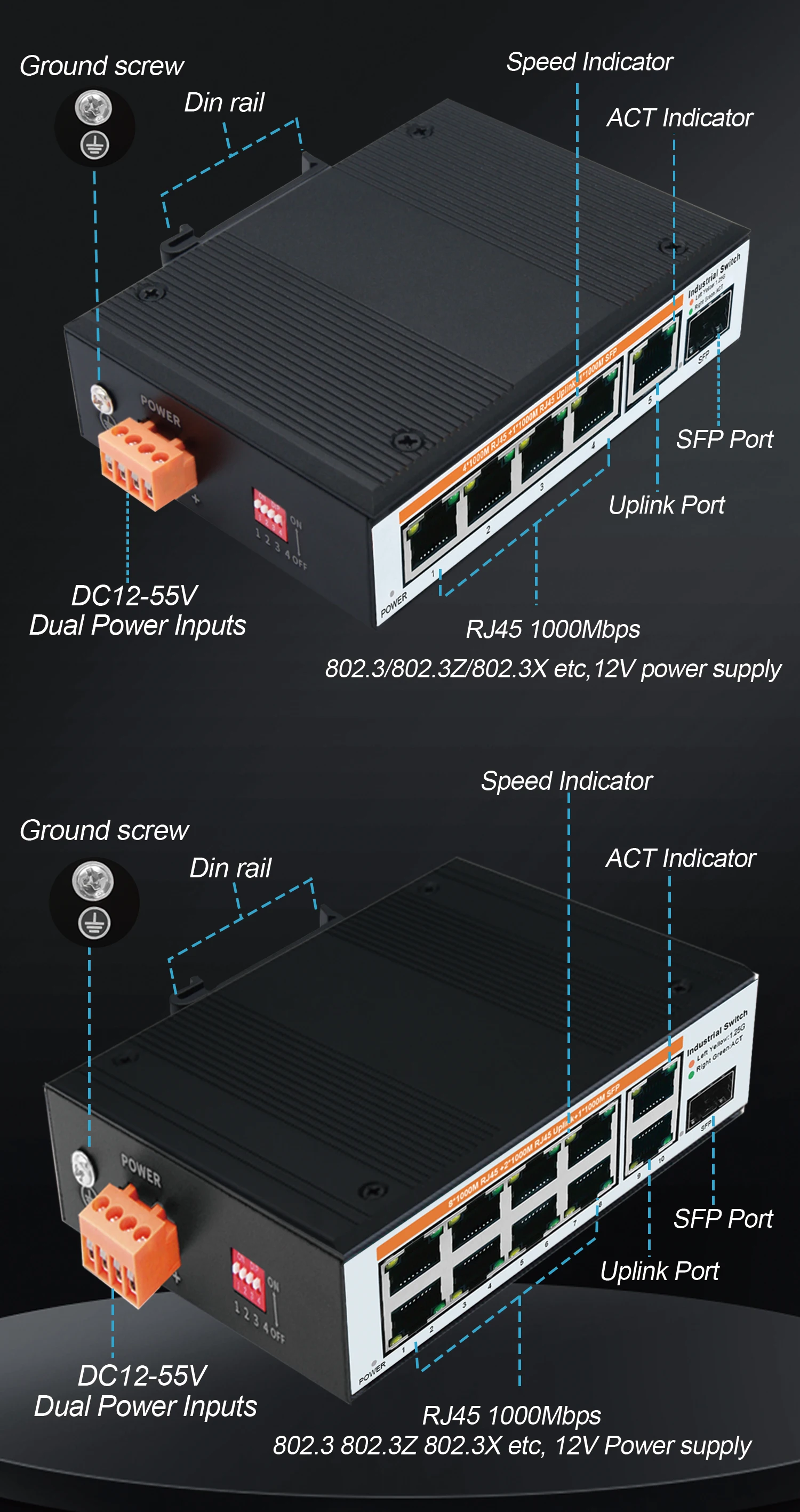

The product adopts high-strength IP40 protective shell, industrial-grade EMC design, and supports a wide range of dual-connection power input DC44-55V(poe) DC12-55V(non-poe) to increase the reliability of communication network; It has the characteristics of high and low temperature resistance, vibration resistance, corrosion resistance, and electromagnetic interference resistance; Four DIP switches are used, which can manually control the opening and closing of LPP ring network protection, BSP broadcast storm suppression, EXTEND port extension, VLAN port isolation, and AI intelligent detection. It adopts 35MM standard clip rail installation, which is widely used in smart grid, rail transit, comprehensive pipe gallery, intelligent transportation, smart city, mining metallurgy, petroleum and petrochemical, new energy, smart factory, shipbuilding, military, building security and other fields, providing favorable protection for industrial communications.
Description of dial switch:

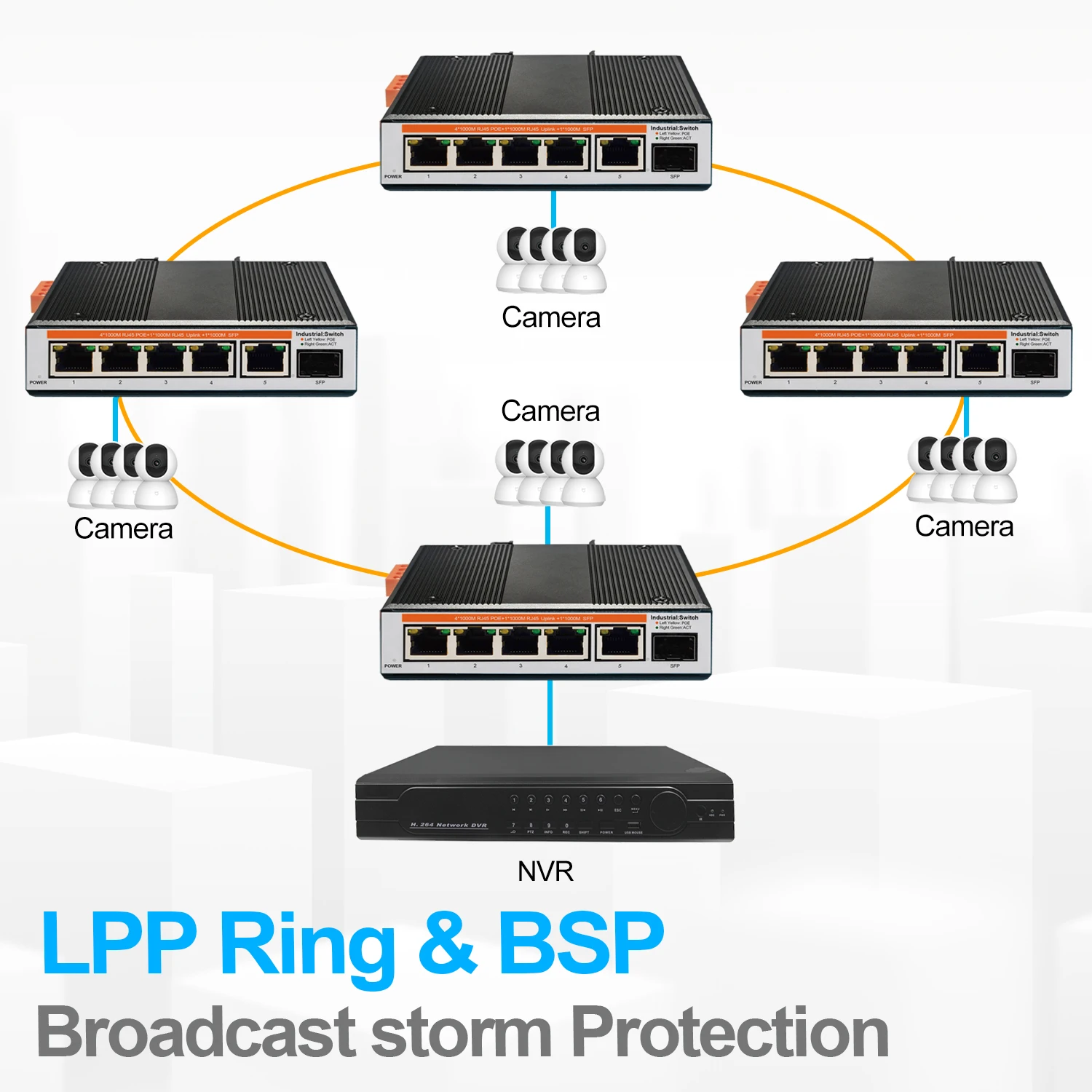

1: LPP & BSP ring network protection and broadcast storm protection;

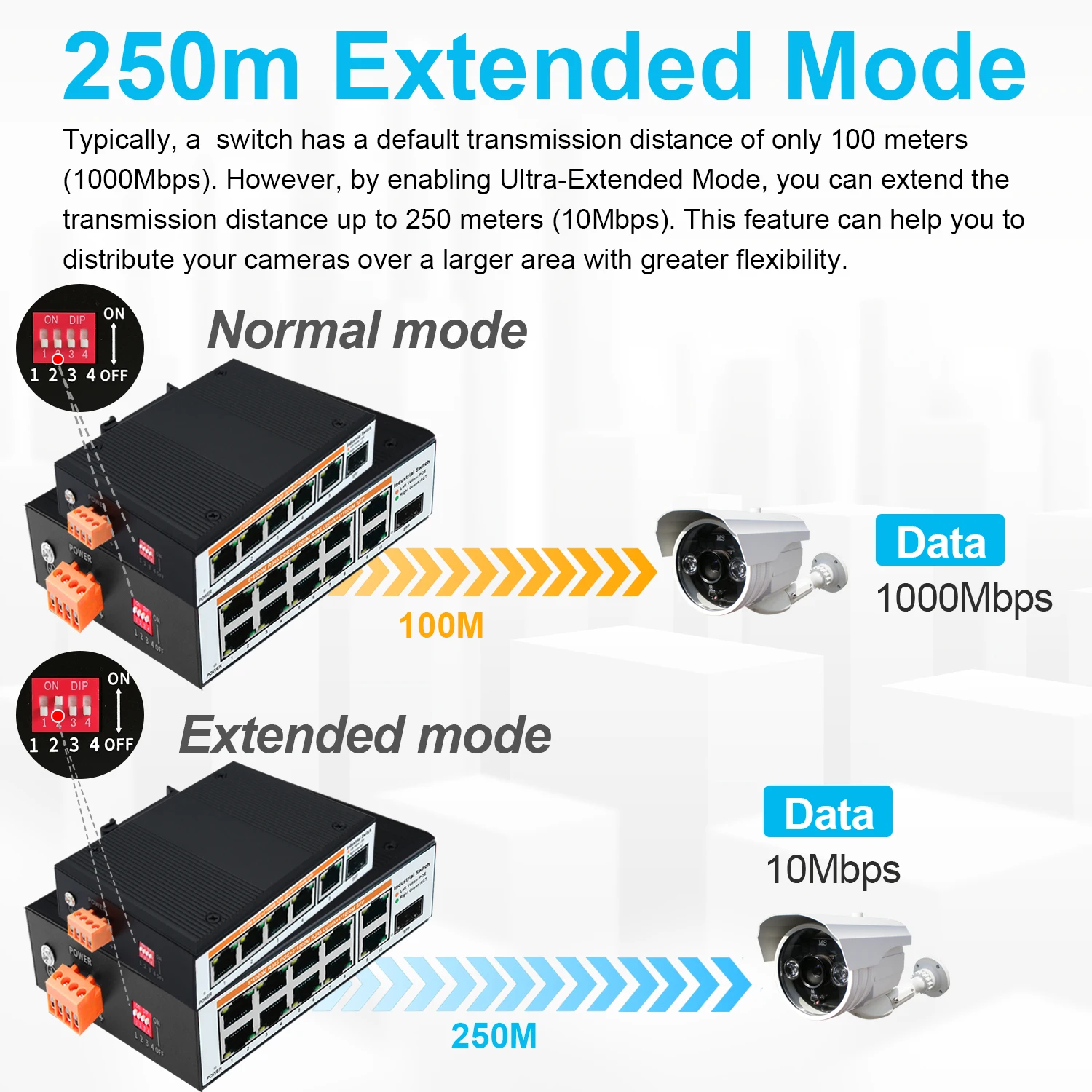

2: EXTEND port 1 extended by 250 meters;
3: VLAN ports 1-4/1-8 are isolated from each other;
4: The AI port intelligently detects the crash and restarts.
