ES32 Stairs Led Light Controller PIR Sensor 32CH Single Color 2CH RGB Pixel SPI LED Strip Dimmer Sensor Stair Light Controller
ES32 Stairs Led Light Controller PIR Sensor 32CH Single Color 2CH RGB Pixel SPI LED Strip Dimmer Sensor Stair Light Controller

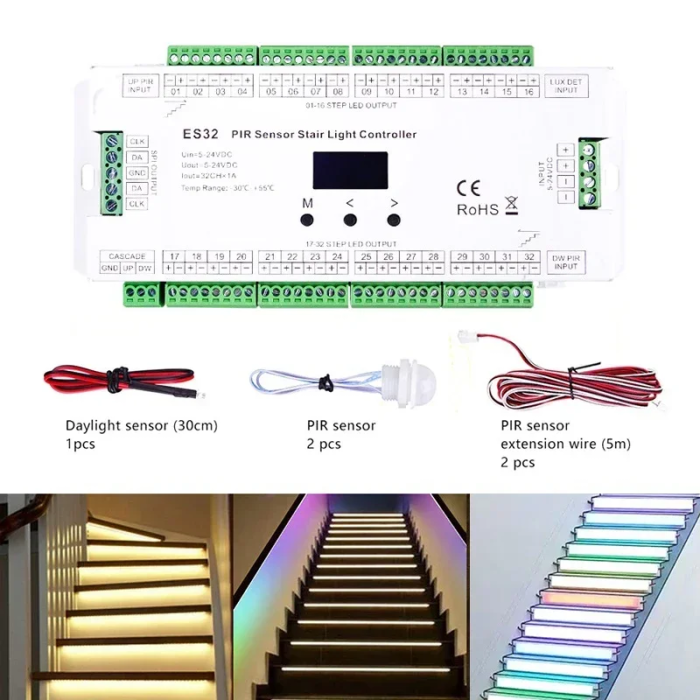

Package Content:
1 x Stair Light Controller
1 x Daylight sensor (30cm)

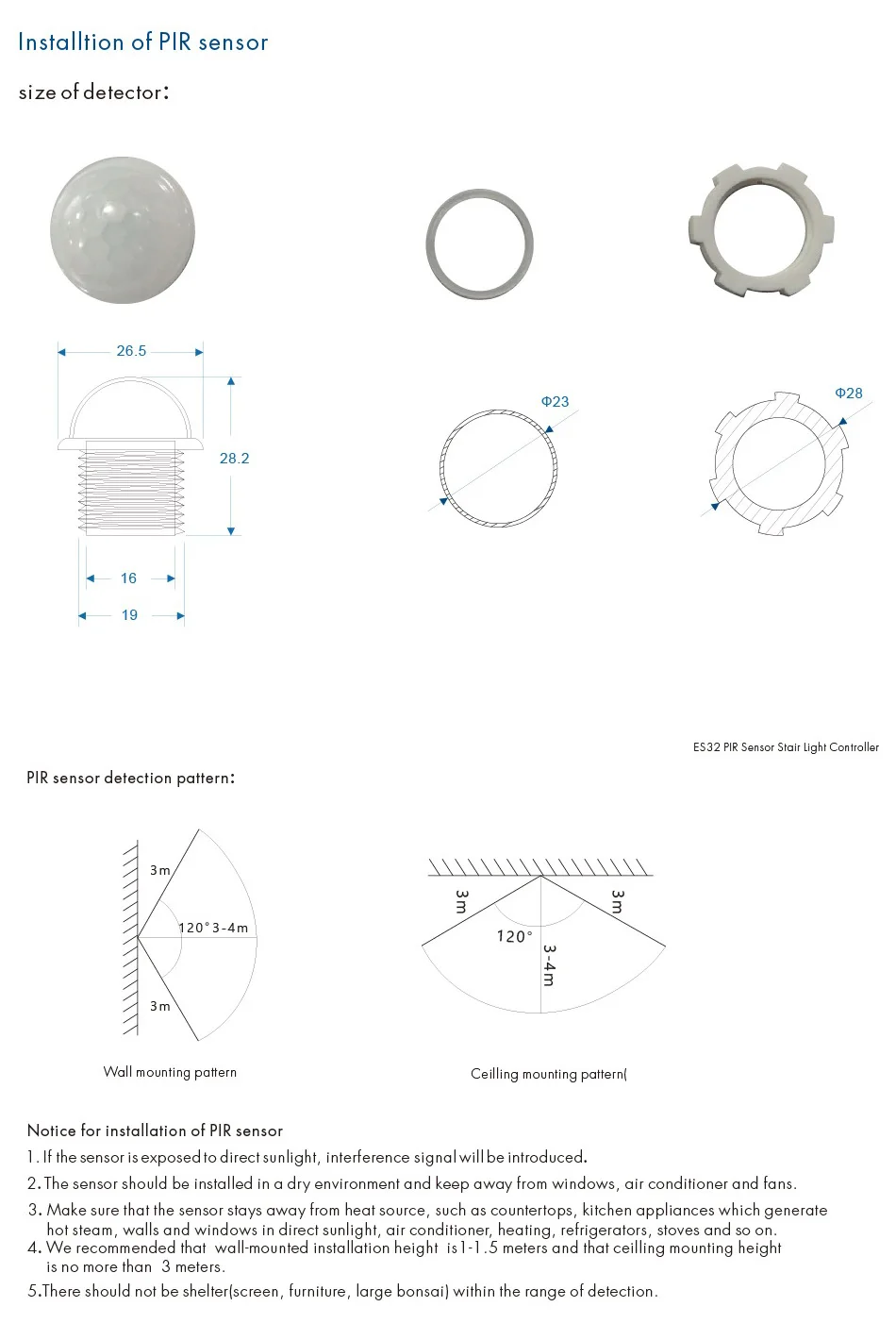

2 x PIR sensor
2 x Extension wire (5m)
1 x User manual
LED Strip Only:
1 x 5M 12V COB LED Strip
Power Supply Only:
1 x Power Supply(200W/300W/400W Optional)
Features:
● With daylight sensor, when sufficient ambient light, the PIR sensor does not turn on the light.

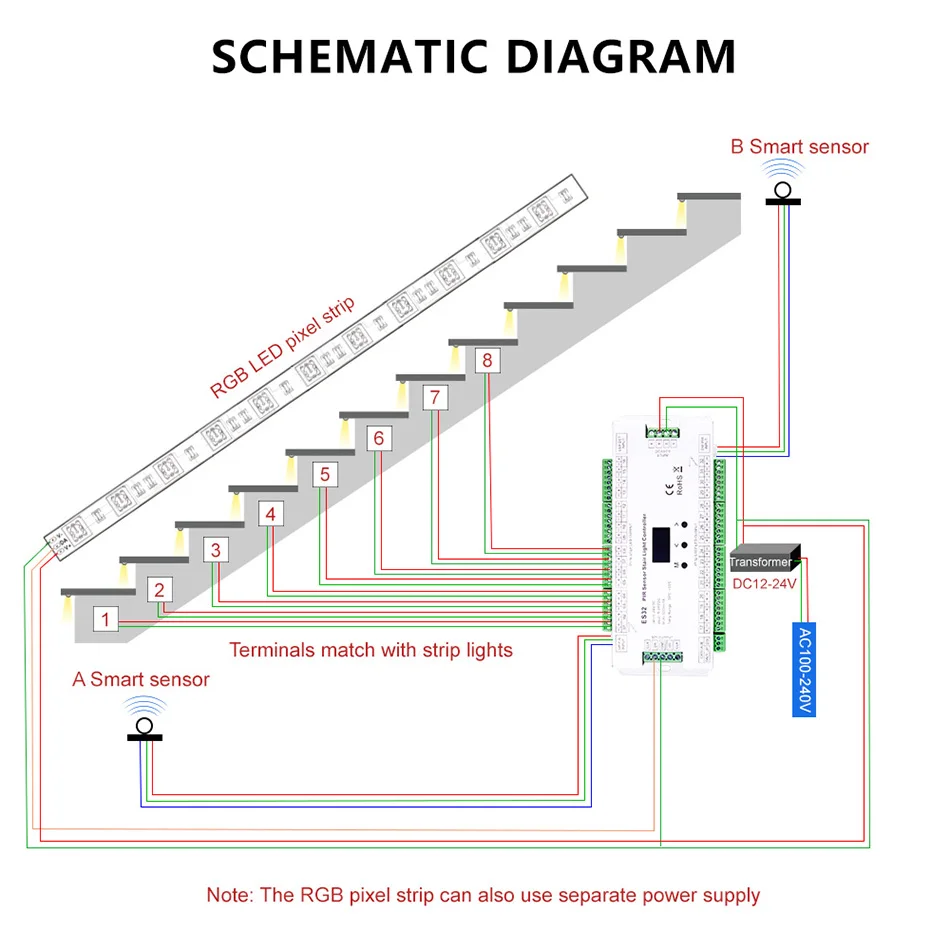

● 32 channels single color LED strip supported, Max 1A current per channel.
● 2 groups SPI(TTL) signal output, drive 27 kinds IC digital RGB LED strip, IC type and R/G/B order can be set.
Compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903,
UCS2909, UCS2912, WS2811,WS2812, TM1829, TM1914A, GW6205, GS8206,GS8208,LPD6803, LPD1101,
D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822.

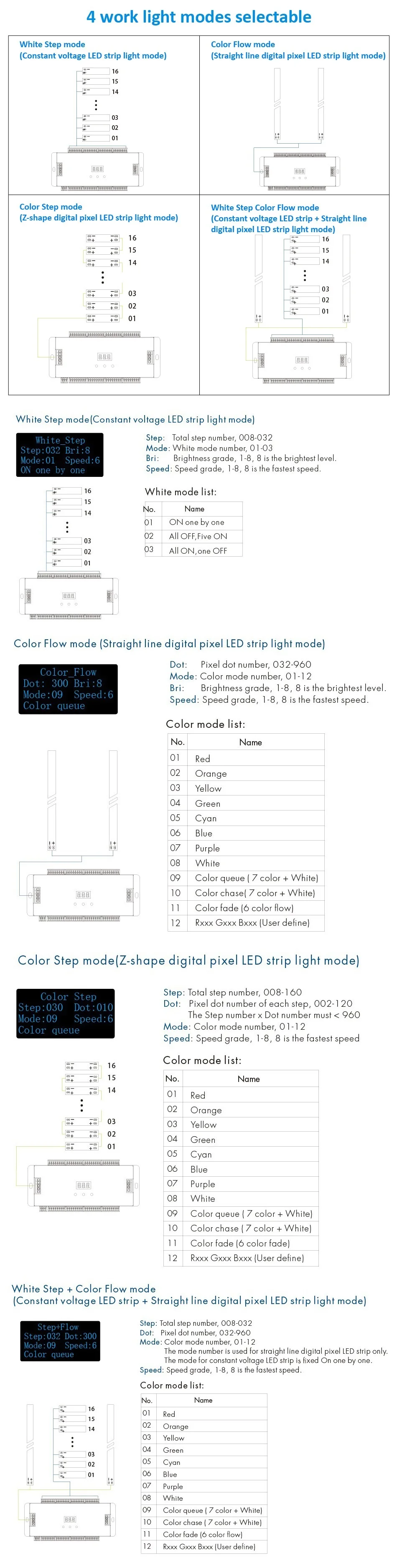

● 4 working modes selectable. Built-in multiple color mode, speed and brightness 1-8 grade adjustable.

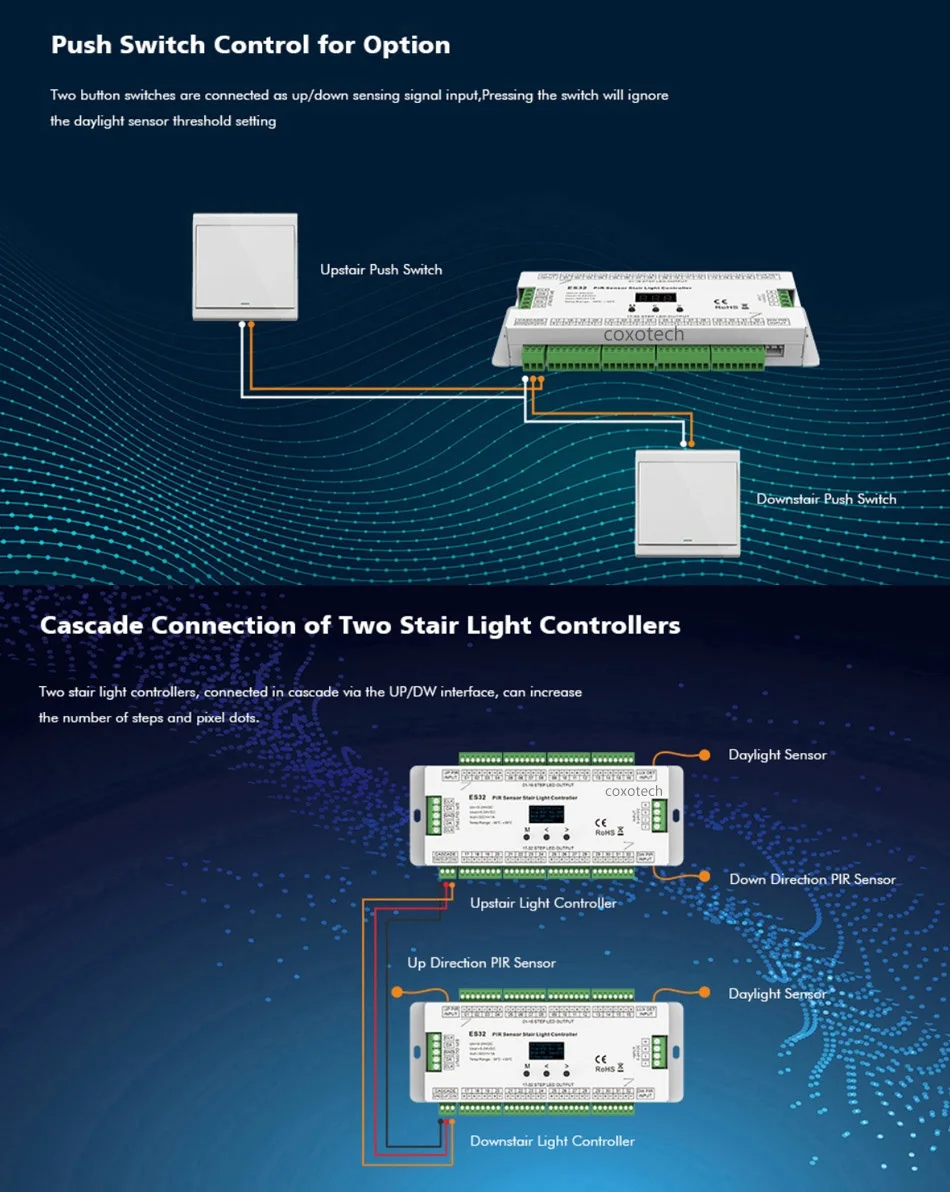

● Two stair light controllers can cascade.
● Push switch can be used as induction signal input.

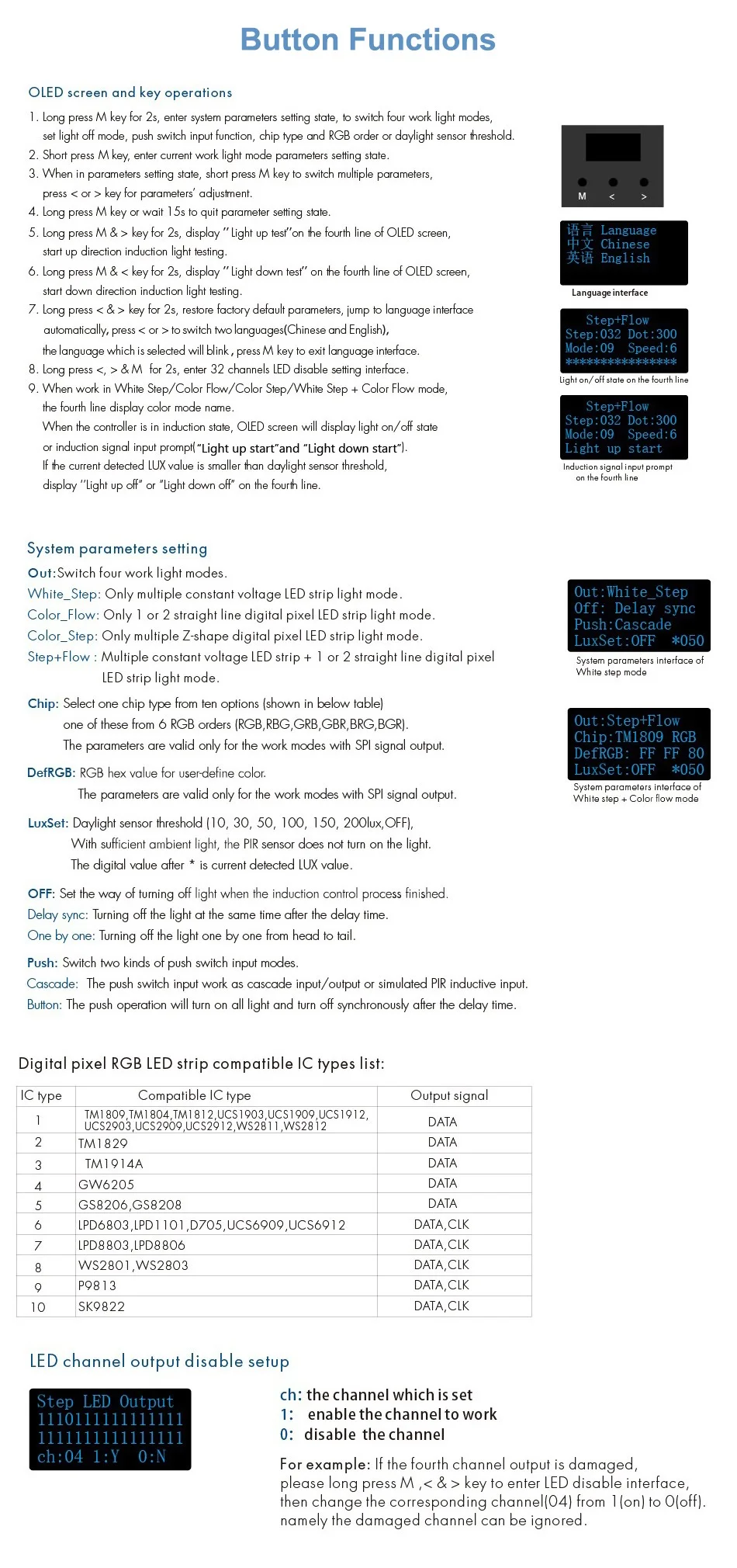

● Easy operation with OLED display and 3 buttons.
● Any damaged LED channel in 32 channels can be set disable.

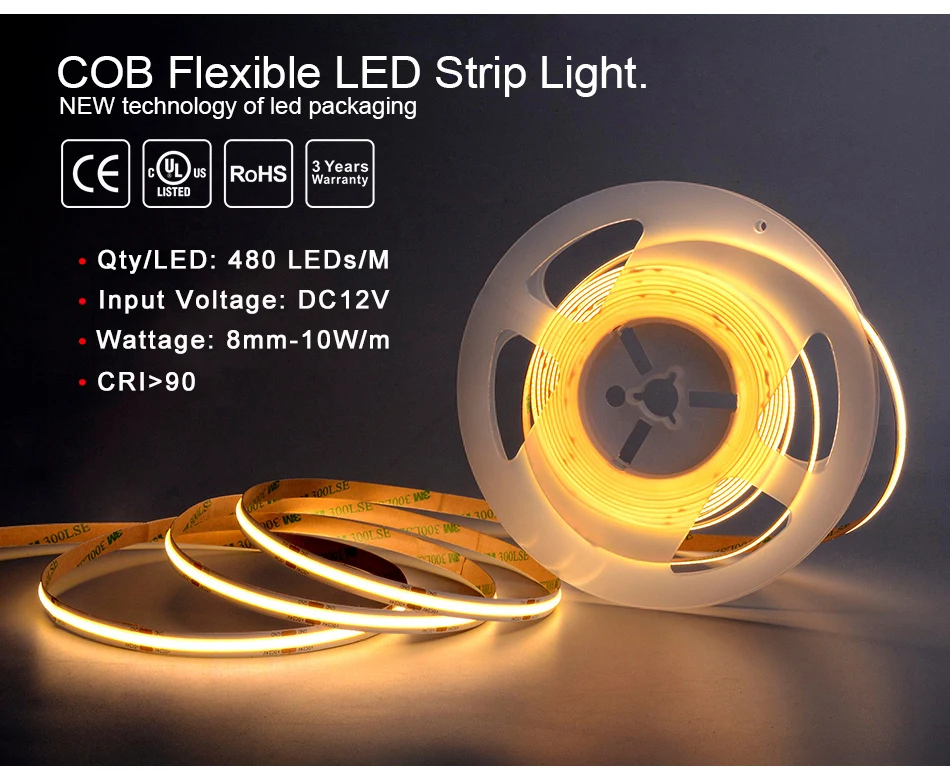

COB LED Strip
LED Power Supply
