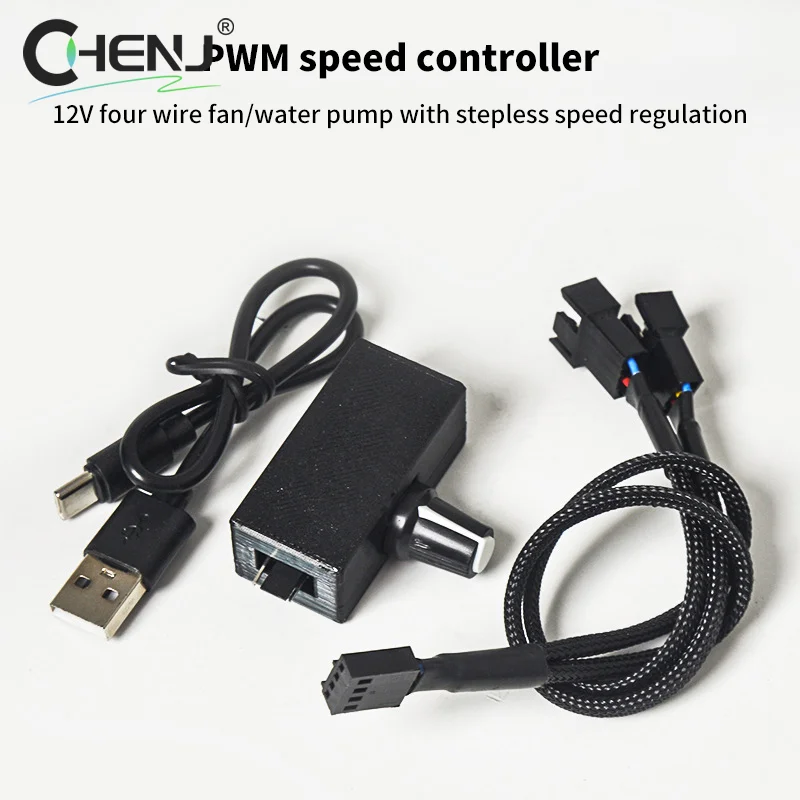

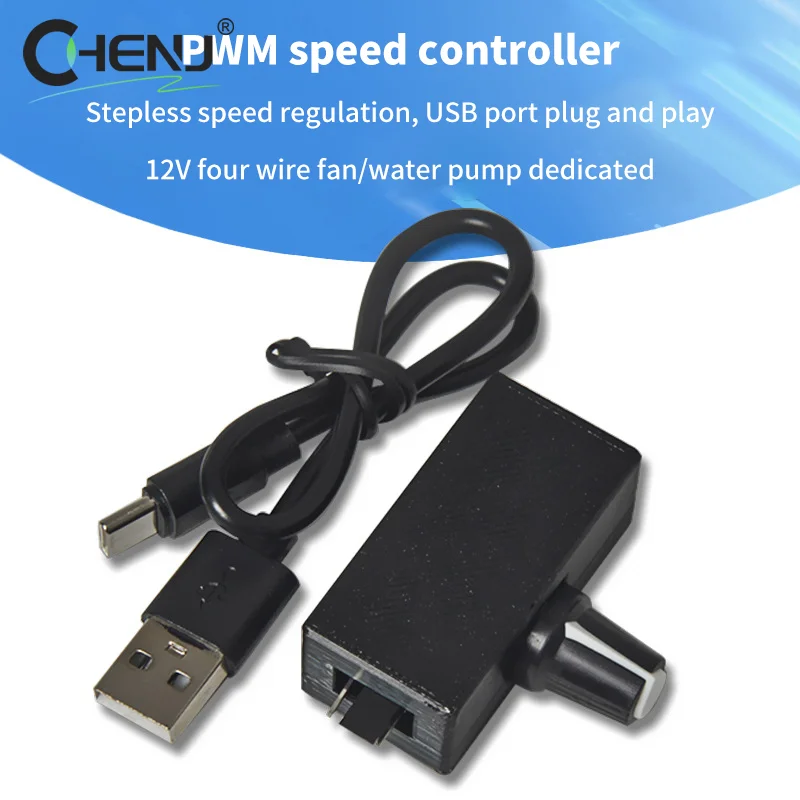

DIY Water-cooling Cooling PWM Speed Controller 4Pin Fan Speed Controller TYPE-C USB Interface Power Supply

Features:

1. The product is made of high-quality PLA environmental shell material, good toughness and wear resistance, excellent electrical insulation

2. The input of the product is TYPE-C female port, can be perfectly compatible with TYPE-C port charger (PD) as a power supply device use

3. All-in-one solution, integrated power supply + speed control, more convenient to use.

4. Stable performance, built-in PWM signal generation circuit and DC-DC boost circuit.

5. Small speed regulator has a big role, compatible with most of the USB fan pump speed, can also be applied to routers / small host / soft routing and other DIY cooling

Product Description:

PWM speed regulator input for the C port, the output is a small 4Pin socket for PWM fan, built-in DC-DC boost circuit, 5V boost to 12V, speed regulation is achieved by outputting PWM signals, because the built-in boost circuit has losses (efficiency of roughly 85%), the output current is too large then there will be significant heating, it is recommended that the output current is controlled at 0.5A or less, for a short period of time can be up to 0.7A.

Parameter:

Product name: PWM speed regulator

Input voltage: 5V

Output voltage: 12V

PWM frequency: about 25KHz

Output Current: Rated 0.5A Upper limit 0.7A

Case material: PLA+ (FDM molding)

Input port: USB TYPE-C female port

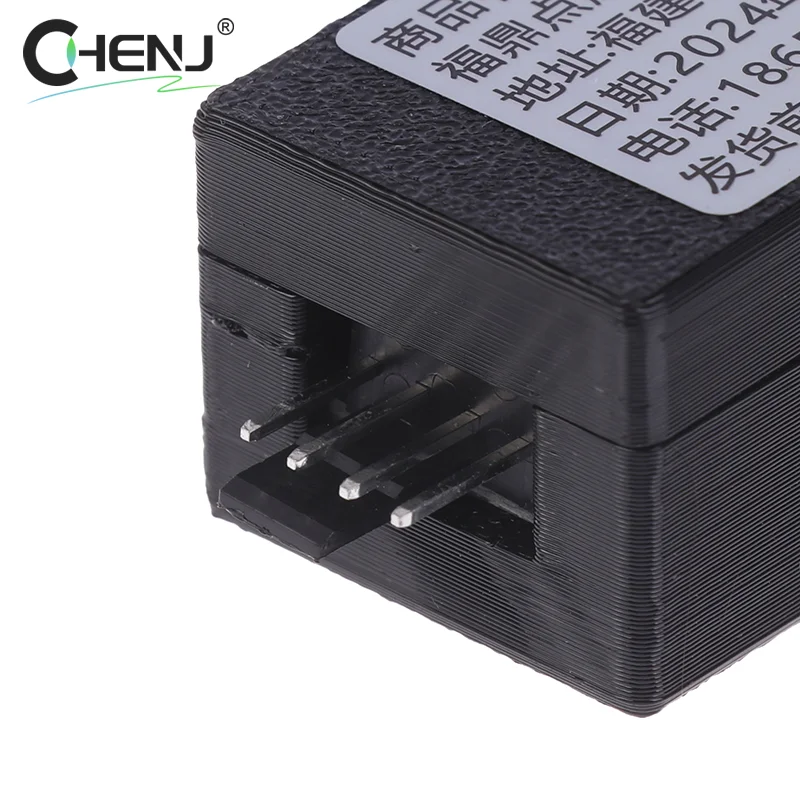

Output port: PWM 4Pin (KF2510)

Speed control range: PWM duty cycle 0-100%

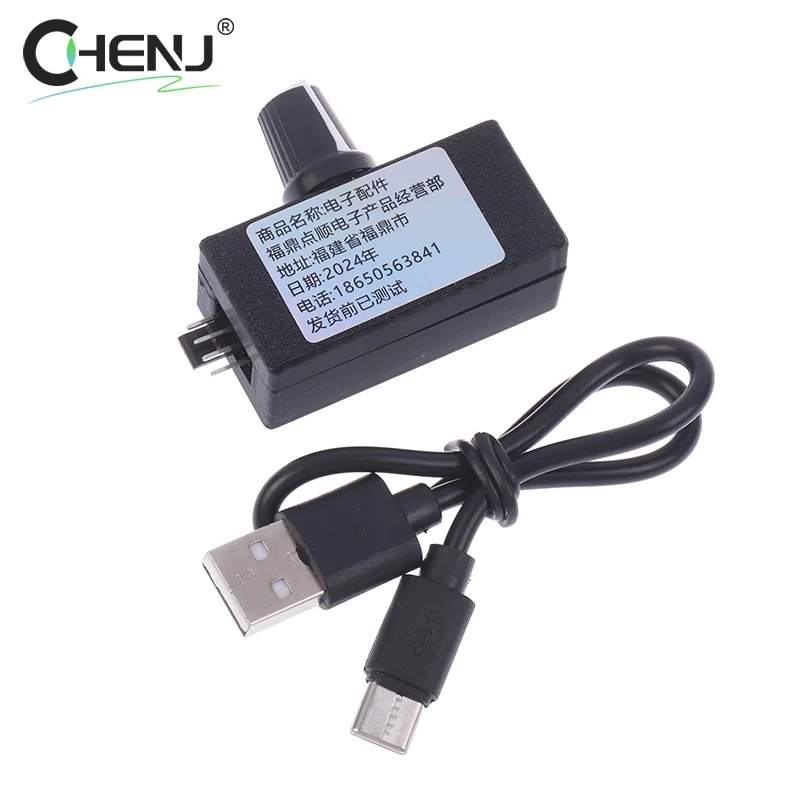

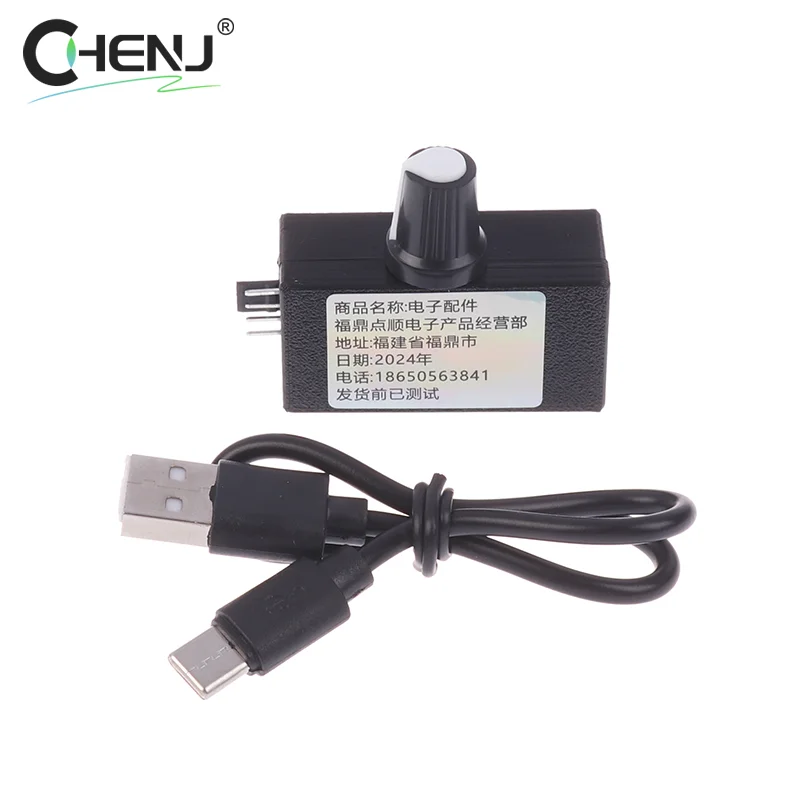

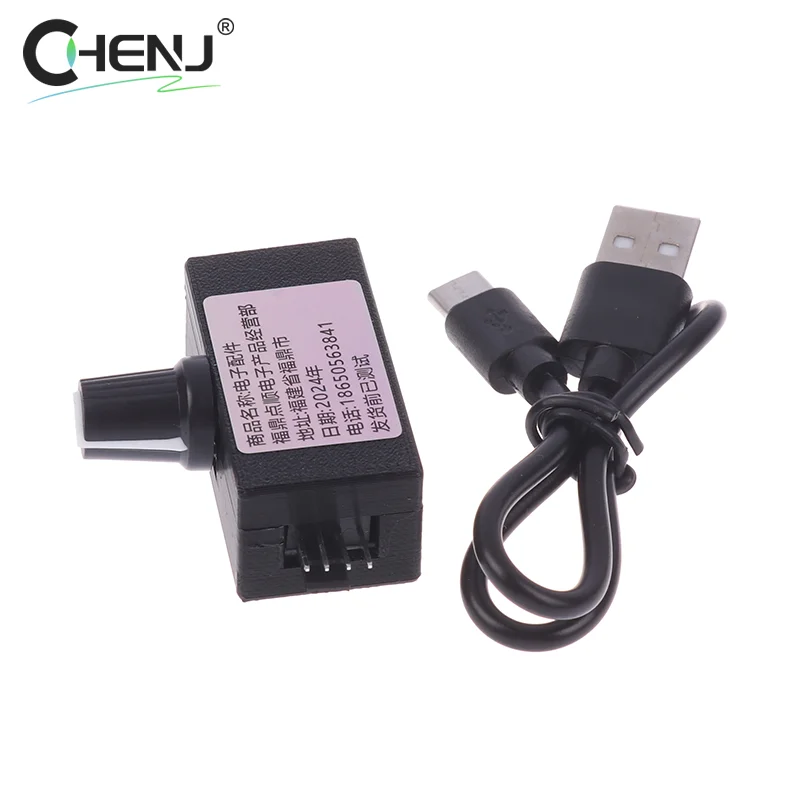

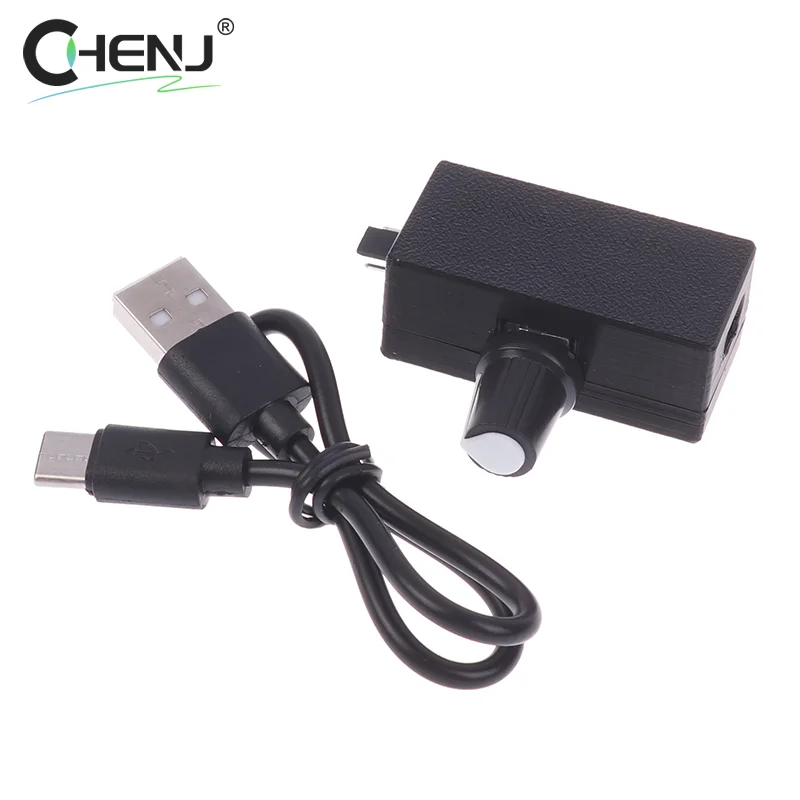

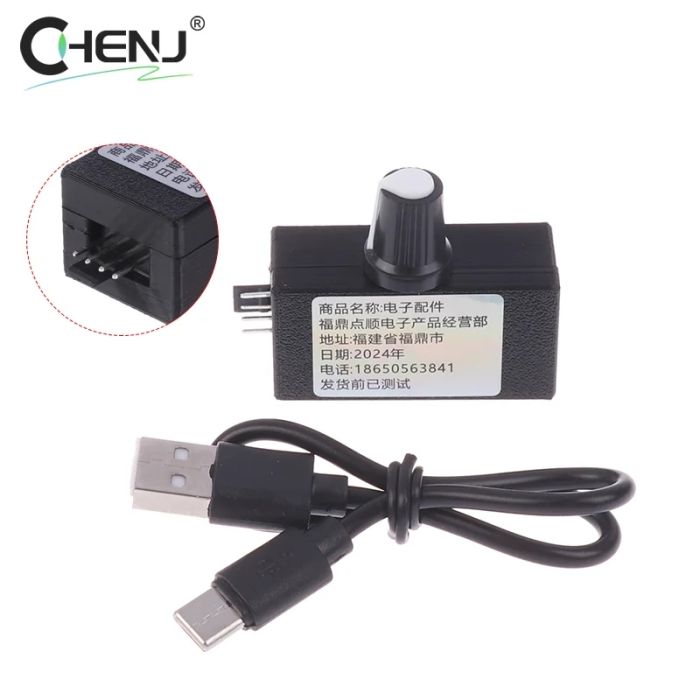

Package include:

Speed Controller *1

30cm short cable*1

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received.

2. Please allow slight manual measurement deviation for the data.
