DIY Electronic Kit LED Thumb Flowing Light Production Kit Light-emitting Diode Fun Welding Microcontroller Soldering Practice

The products which are suitable for electronic enthusiasts to study and repair circuits. We only guarantee that the products are in good condition before delivery, and cannot guarantee 100% success after installation. The installation of the circuit requires the buyer to have experience in the circuit, please read the product description carefully before payment.

Function Description

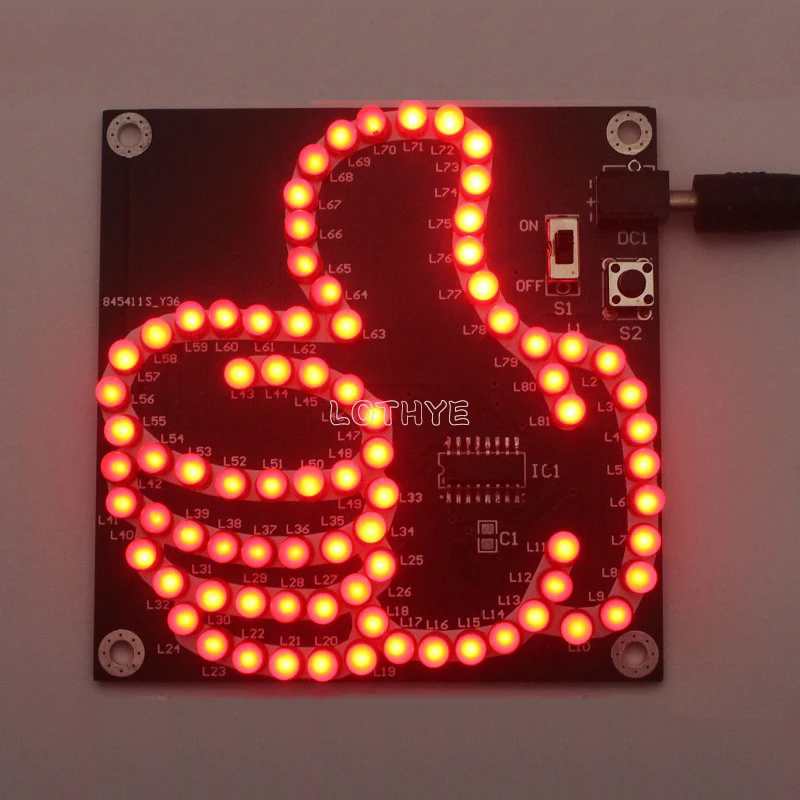

This circuit is an innovative design for dynamic electronics. After being powered on, the thumb like pattern composed of 81 LEDs presents various flashing effects. Press button S2 to adjust the water flow speed.

Introduction to Circuit Principles

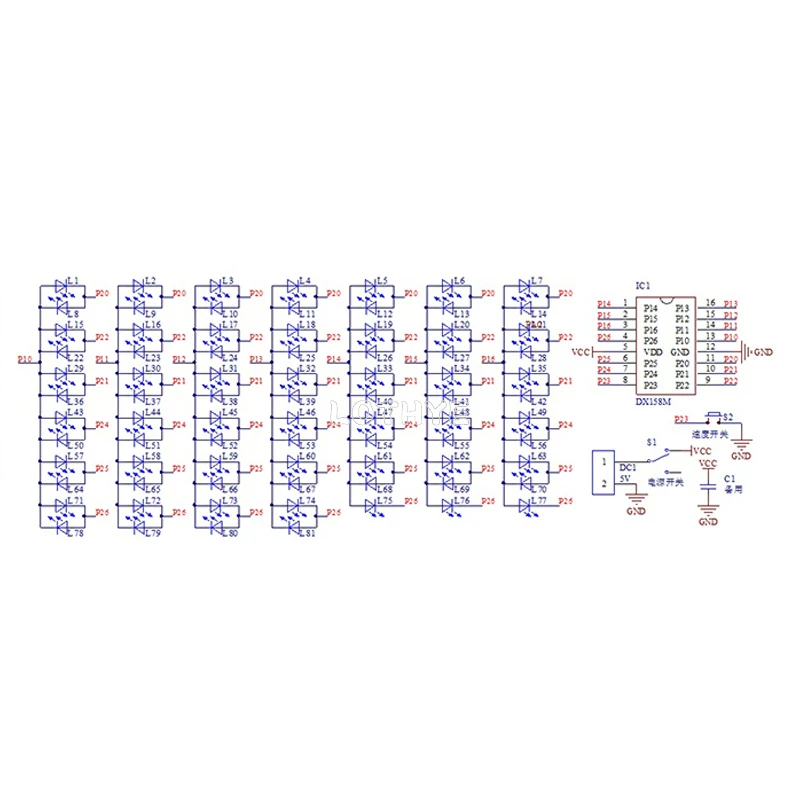

81 LEDs are connected to a dedicated microcontroller DX158 through a combination of rows and columns, and are scanned and driven to light up in the desired way through the microcontroller program. The microcontroller program in this kit has been burned and welded to produce the desired effect. DC1 is a power socket that is compatible with both a 1.3mm small DC socket and an Android interface power socket. It can be powered by 4-5V DC. The kit provides a small DC socket by default, without an Android socket, and can be powered by any 5V charging head. S1 power switch, C1 is a backup filter capacitor, which generally does not need to be installed and is not provided in the kit, which does not affect the effectiveness of use.

Installation precautions: All light-emitting diodes and microcontrollers have polarity components. Be careful not to install them upside down. If you need other colors or colorful effects, just replace the LED.
