DC 3.7V 5V 9V 12V Wireless RF Remote Control Switch Relay Driver Power ON OFF For LED Light Strip Reading Lamp Micro Switch

DC 3.7V 5V 9V 12V Wireless RF Remote Control Switch Relay Driver Power ON OFF For LED Light Strip Reading Lamp Micro Switch

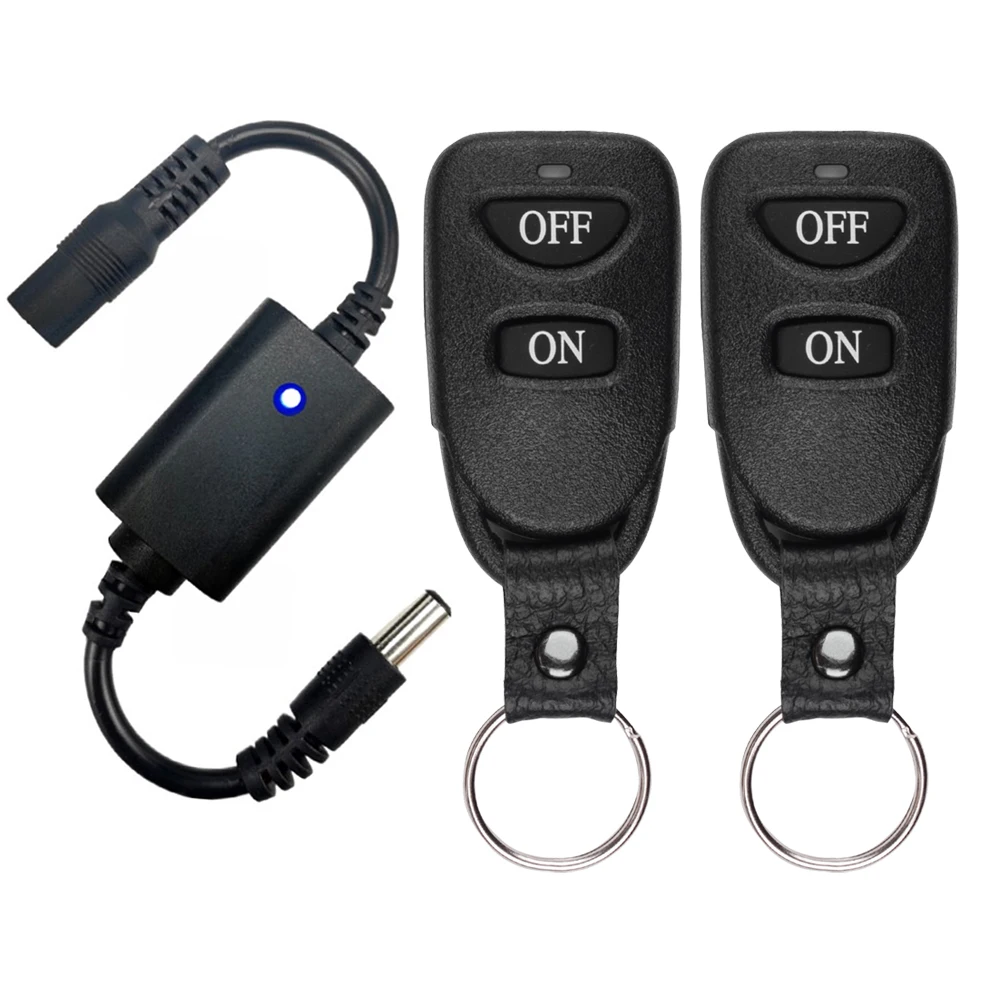

This is a receiver with male and female cable, which can be directly connected to the male connector of the power supply and the female connector of the device, eliminating the trouble of wiring.

Wide voltage DC3.7V-12V can be used. Input DC3.7V-12V, output DC3.7V-12V,

Length: 21CM/8.2INCH
DC male and female size: 5.5*2.1mm
Working mode: MOS tube SCR silent and non-contact (control e positive electrode VCC + )
Frequency: 433.92MHZ
Standby & working current: 6mA
Load capacity: 3A
Receiver Weight: 20g

Code pairing method: The receiver has a learning function, can be equipped with a remote control, and can be set for multiple sets of universal

Transmitter:

1.Buttons: 2 Buttons
2.Working Voltage:DC6V (2PCS CR2016)
3.Operating frequency :433MHz
4.Remote Distance: 20-50M
5.Operating Current: 13 mAh
6.Encode: EV1527 330K
7.Size: 5.7 x 3.2 x 1.1cm
