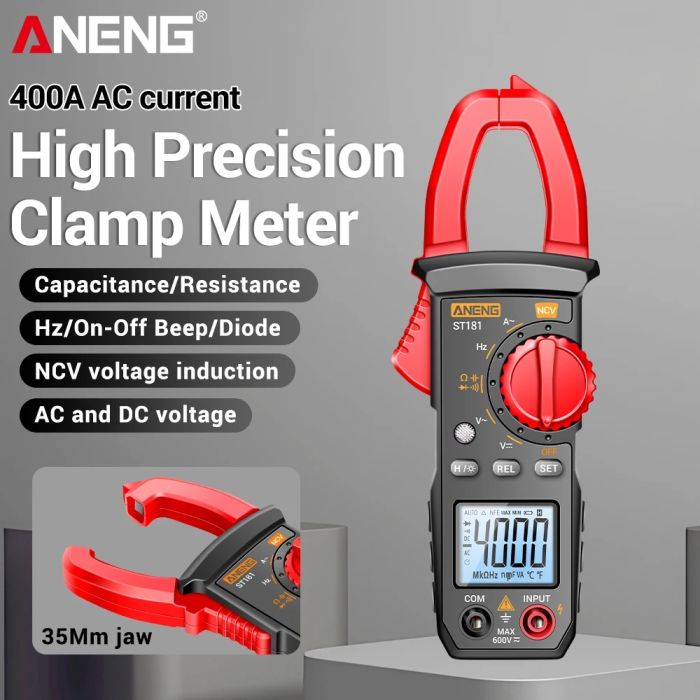

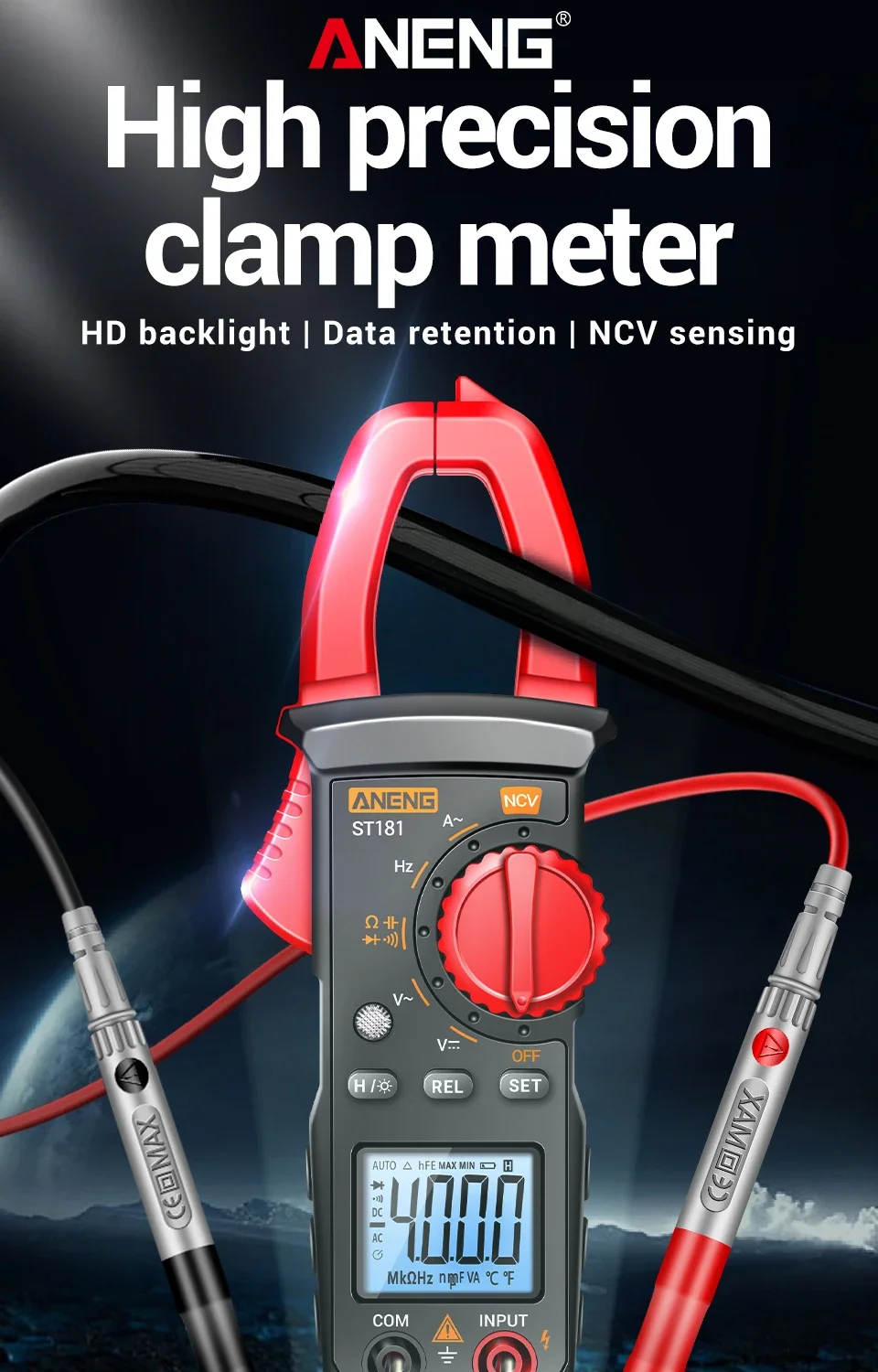

ANENG Digital Clamp Multimeter Professional ST181 AC Current Voltage Continuity Tester Clamp Meter Ammeter NCV Ohm Test tools

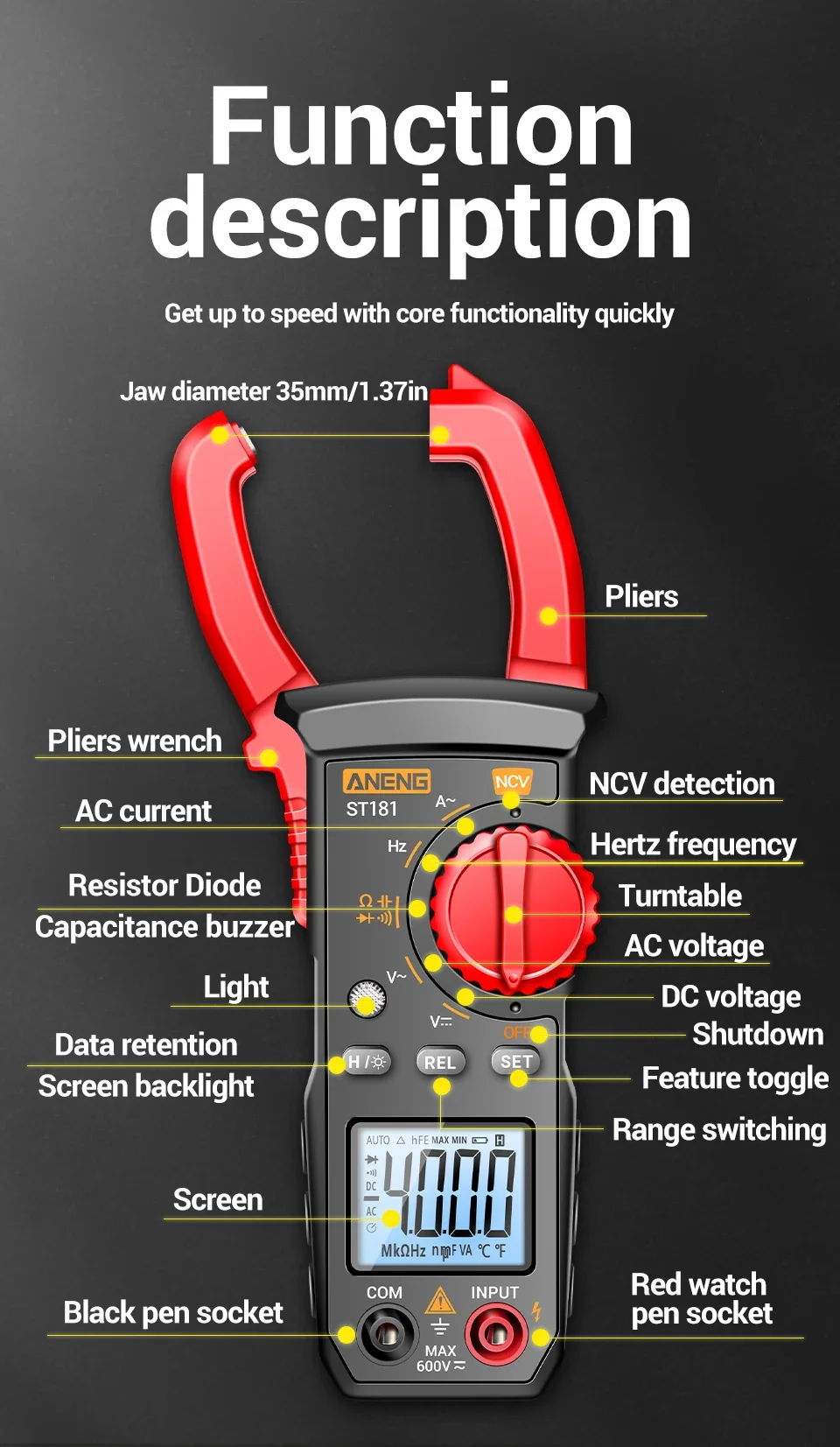

Features:

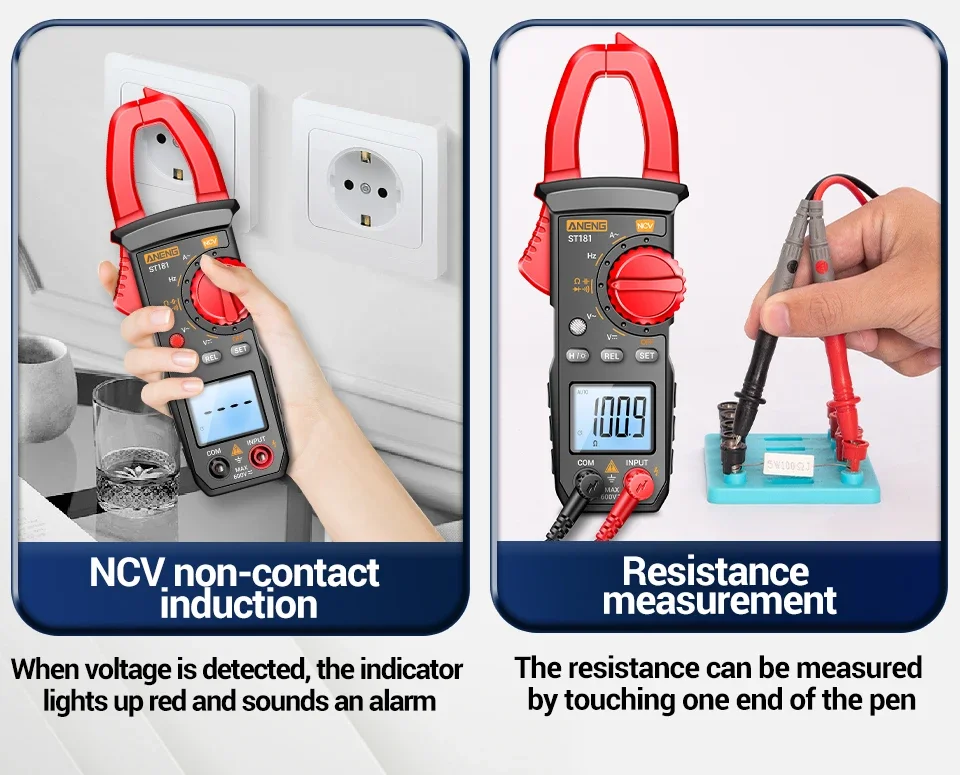

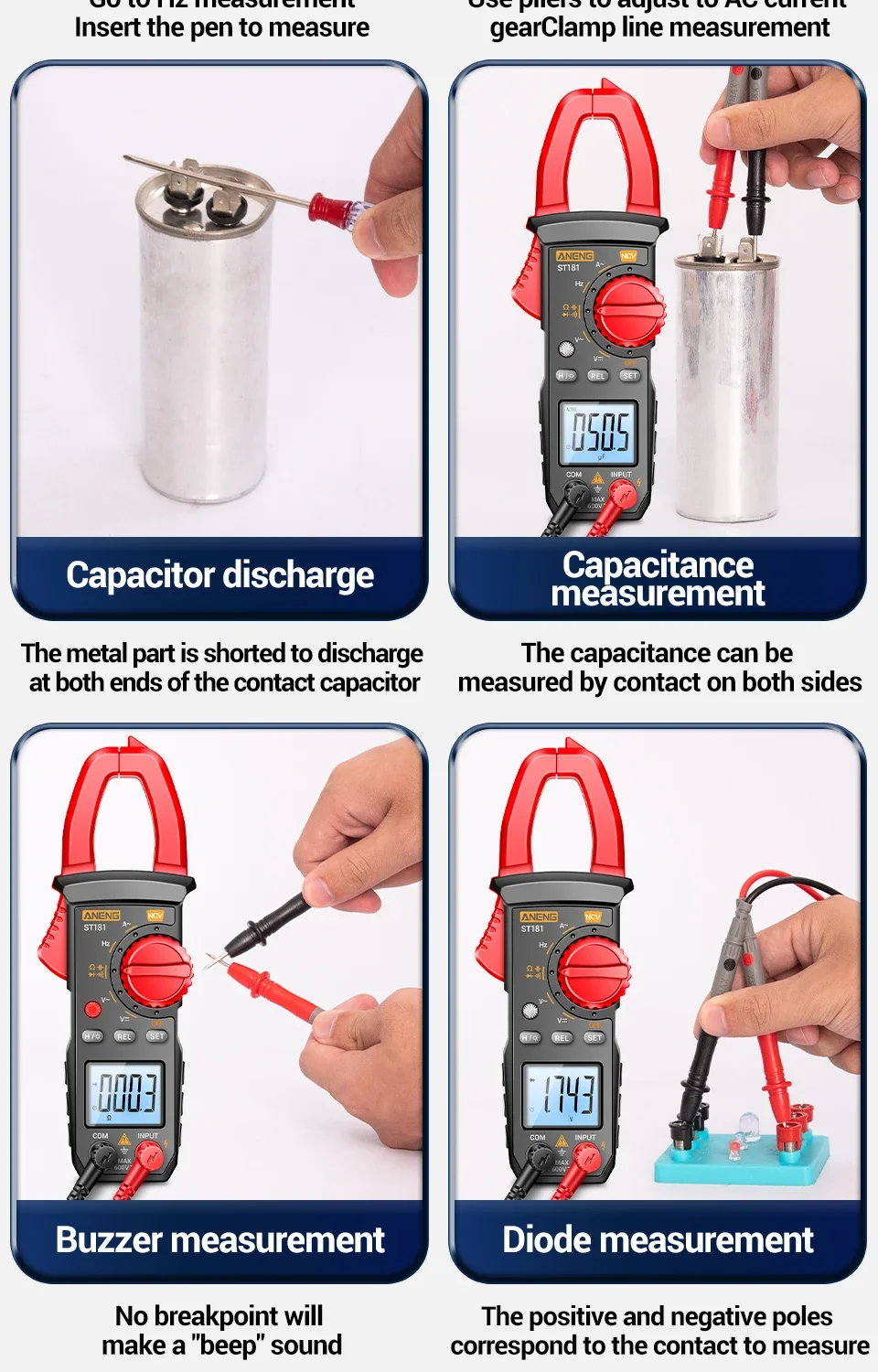

Can measure AC/DC voltage, AC current, resistance and test continuity.
Manual select measurement function and range.
Overload protection for the whole measurement range.

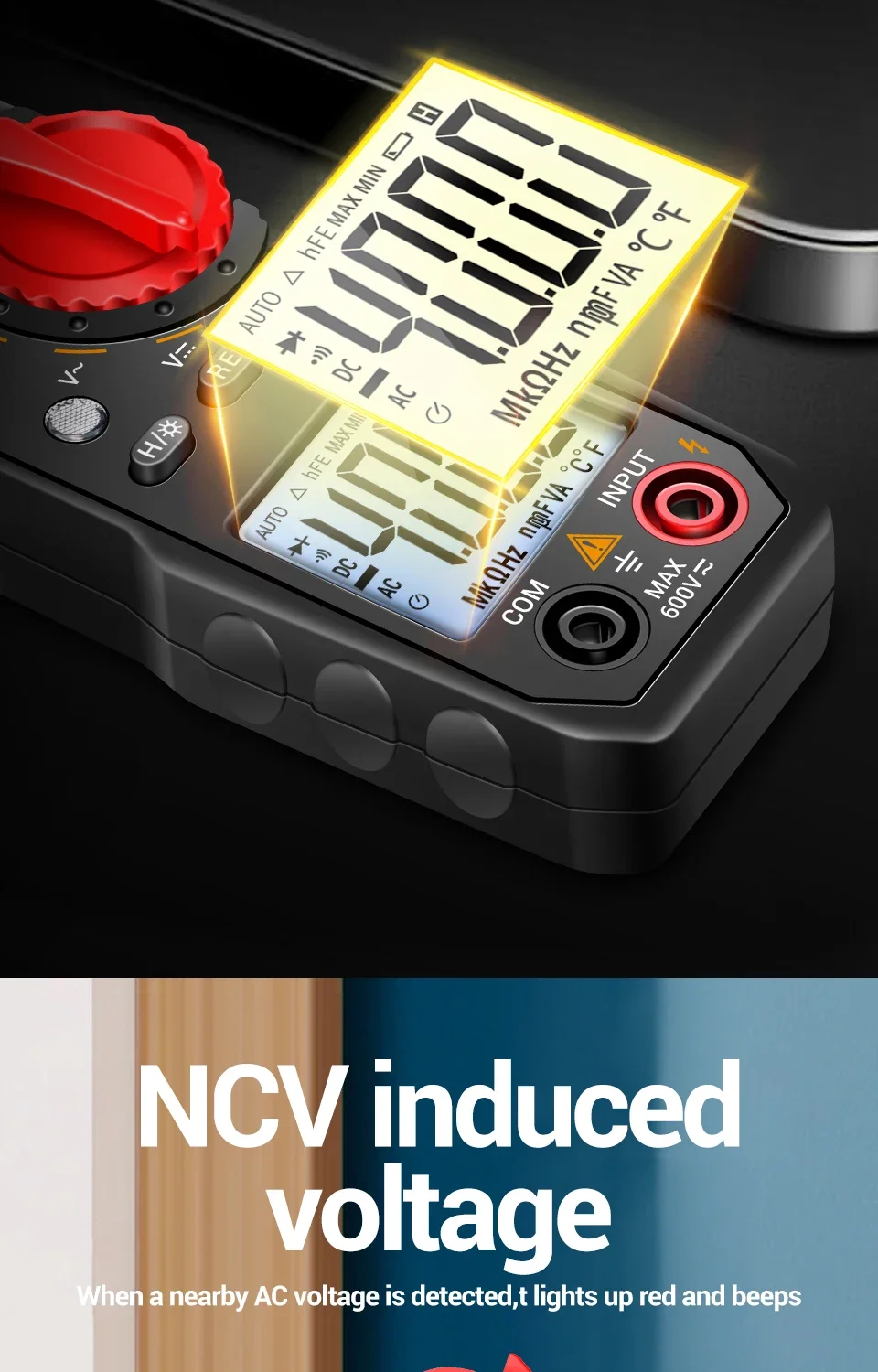

LCD display with backlight, convenient to operate and read.
Data hold function, low battery indication, auto power off.
Suitable for electrical equipment testing and maintenance.

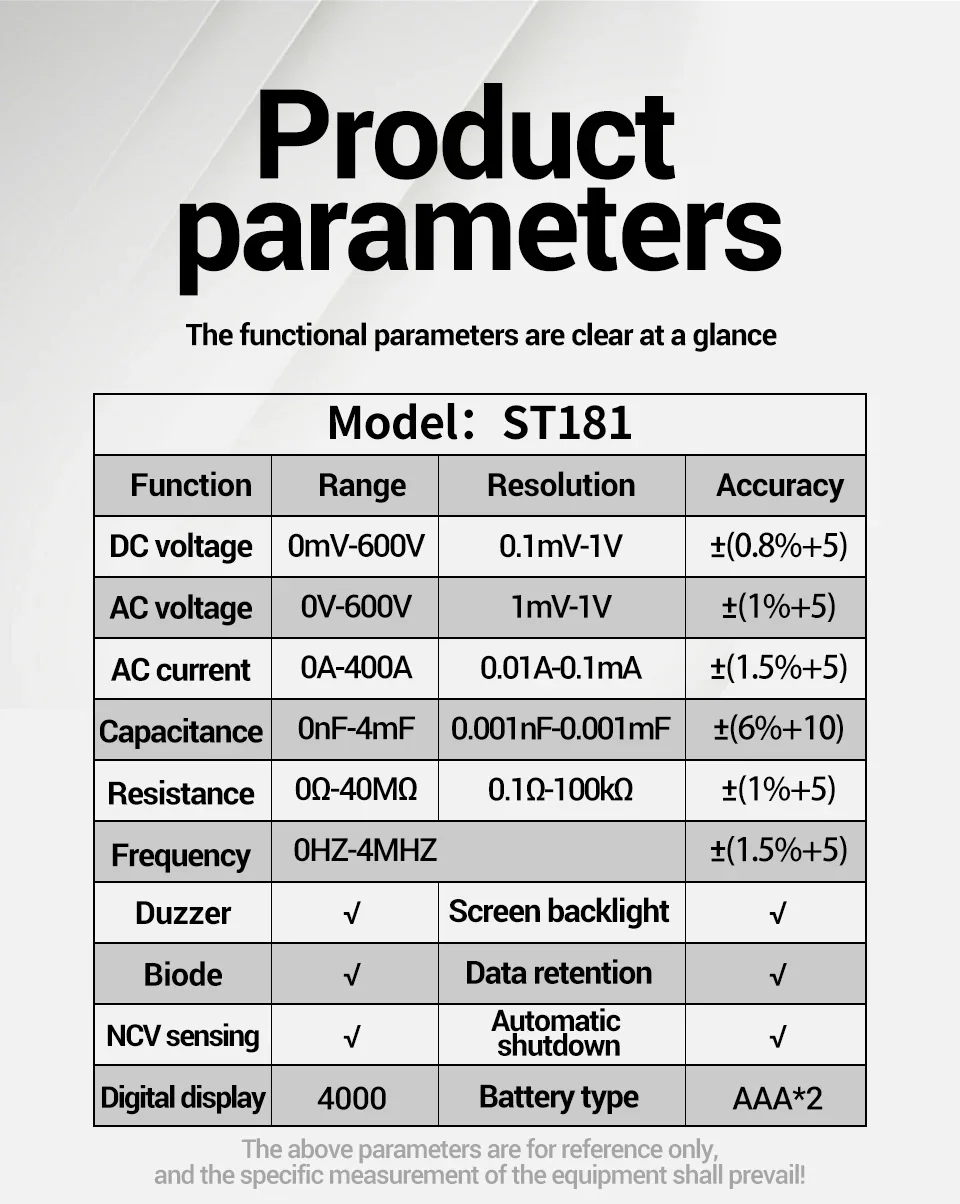

Specifications:
Model | ST181 | Display | 4000 counts |
Range | Accuracy | ||
AC voltage | 4V/40V/400V/600V | ±(1.5%+3) | |
DC voltage | 400mV/4V/40V/400V/600V | ±(1.0%+3) | |
Resistance | 400/4k/40k/400k/4M omh | ±(1.2%+3) | |
40M omh | ±(1.5%+5) | ||

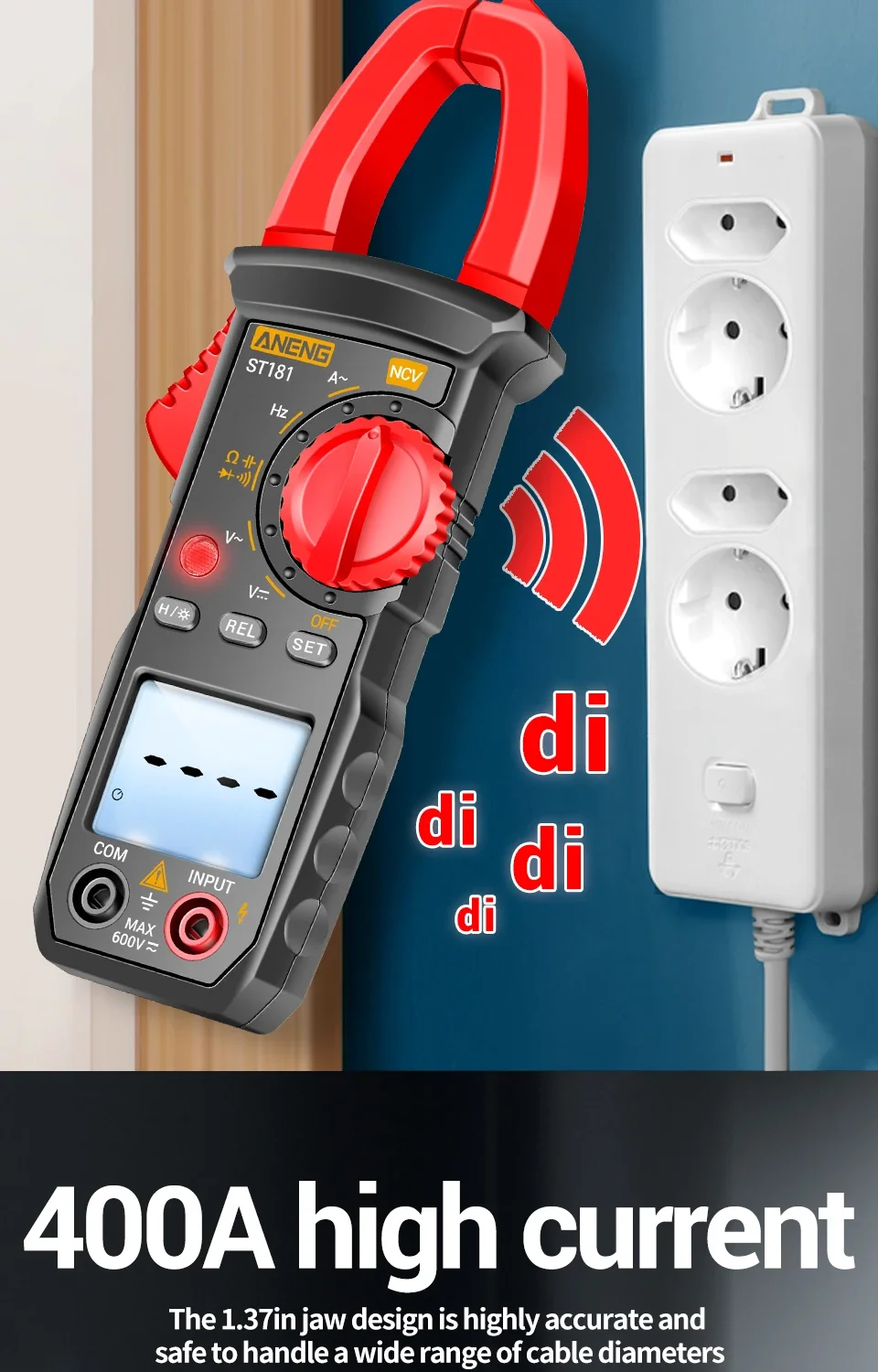

AC current | 40A/400A | ±(2.5%+3) | |

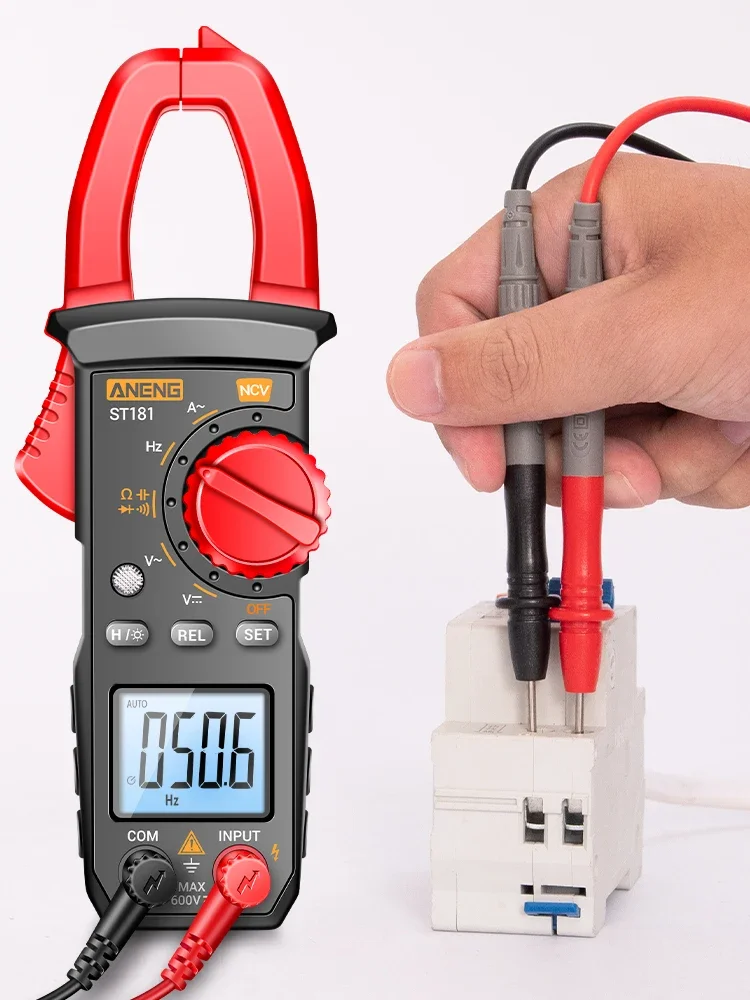

Frequency | 10Hz~400kHz | ±(1.0%+5) | |
400kHz~4MHz | ±(2.0%+5) | ||
Capacitance | 1nF~4uF | ±(2.5%+10) | |
4uF~400uF | ±(4.0%+20) | ||
4mF | ±(5.0%+30) | ||
Working temperature | 18°C〜28°C | ||

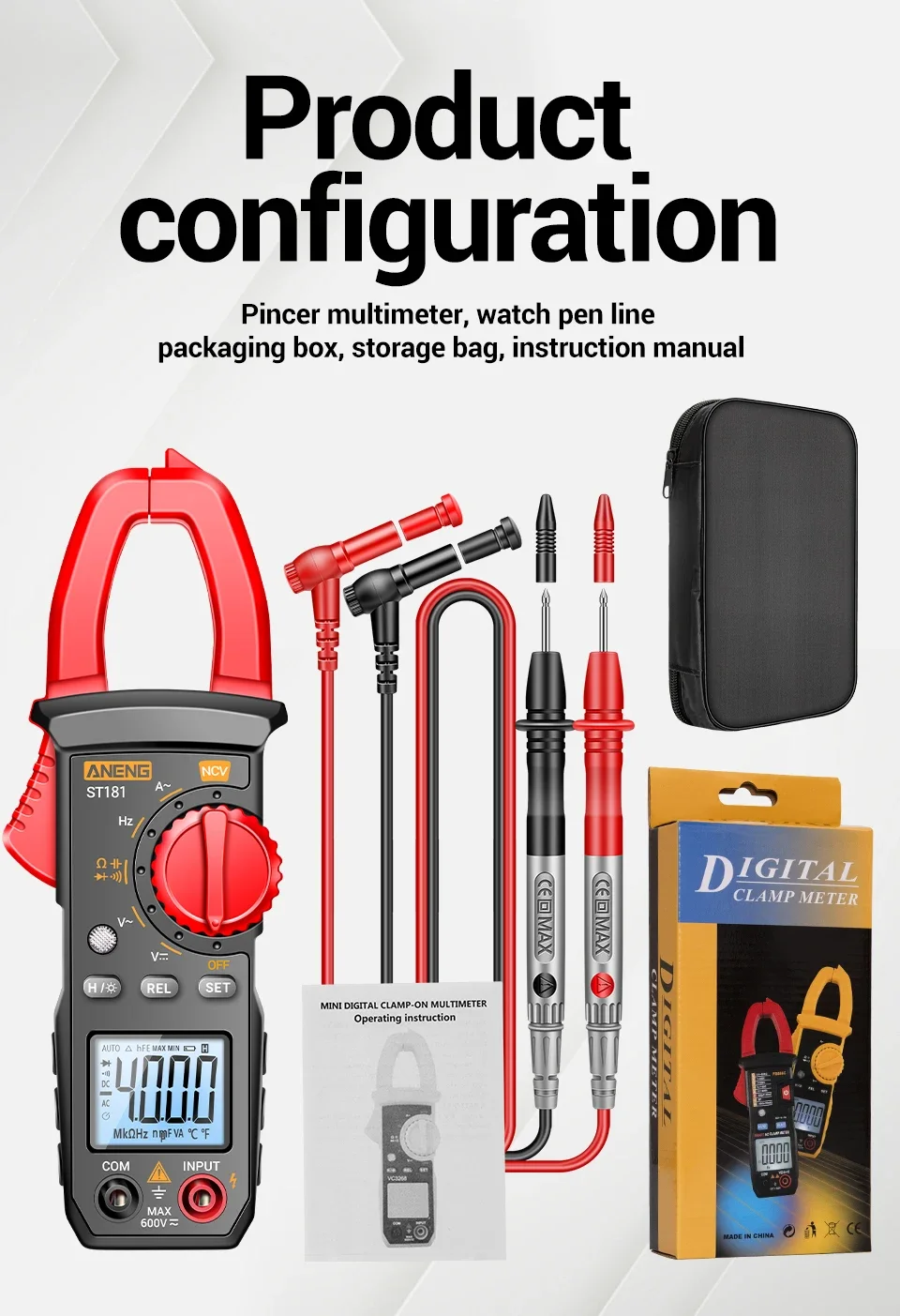

Package List:
1 * ANENG ST181 Clamp Meter （Without Battery）
1 * Black Packing Bag
2 * Test Probes
1 * User Manual
