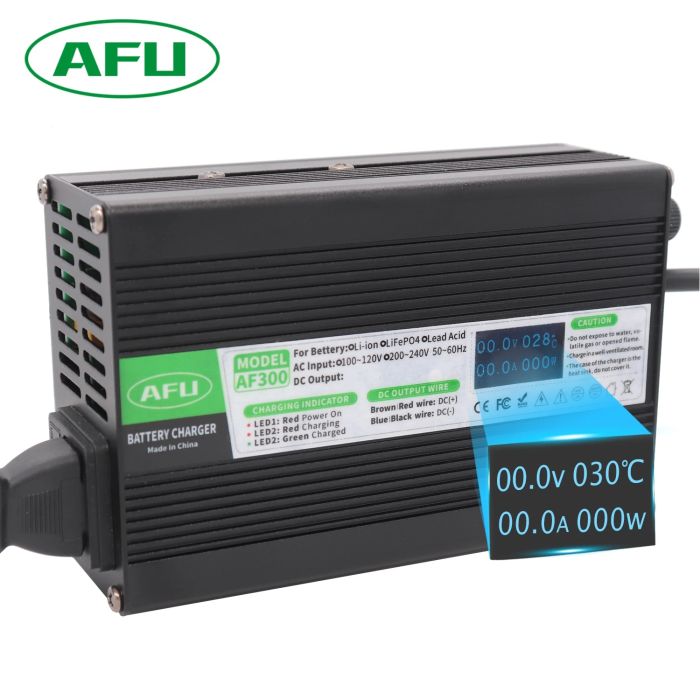

33.6V 10A Charger Li-ion Battery Smart Charger Usd For 8S 29.6V Li-ion Battery OLED Display Fast Charger
Product Name | AF300 BATTERY CHARGER | ||
Brand Name | AFU | Model Number | AF300-33610B |
AC Input Voltage | 100~120V/200~240Vac | Frequency | 50~60Hz |
DC Output Voltage | 33.6 Volt | DC Output Current | 10 Amp |
Dimension | 135*90*50mm | Net Weight | 1KG |
Case Color | Black | Case Material | Aluminum case |
Suitable Battery Type | 8S 29.6V Li-ion Lipo Battery (S=Series Connection) | Efficiency | ≥85% |
Charging Mode | Three-stage Intelligent Charging Mode: Constant Current~Constant Voltage~Trickle(Floating Charge) to Ensure Battery Fully Charged (Floating Charge is when Lead Acid charger) | ||
Charging Indicator | Red and Green, double color instructions, Red logo charging, Green logo finished or standby | ||
Operating/Storage Conditions | Operating:Ambient temperature: -20~+40℃; RH: 5~95%; Max. altitude: 10000 meter | ||
Storage:Ambient temperature: -40~+70℃; RH: 0~95%; Max. altitude: 20000 meters | |||
Various Protection | Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge | ||
Our Advantage | Safety certifications CE, RoHS, FCC Directive-compliant, Intelligent IC control ,full automatic transition of CC,CV and Float/Cut-off rickle, meet the demands for different Curve. | ||
Aluminum case, Robust, Elegant, Safe, Stable, Reliable | |||
Package Contents | *1xbattery charger *1xInput Wire *1xUser Manual This battery charger is your affordable necessity without sacrificing performance. It features an integrated MCU and PWM for power control. | ||
