2.4G 4CH D8 D16 Receiver Compatible with PWM Output for FRSKY Futaba Jumper T16 X9D RC FPV Racing Drone

75 Reviews Add Your Review

As low as $17.31 Regular Price $50.38

In stock

Only %1 left

SKU

1005006440529191

Details

Item Description :

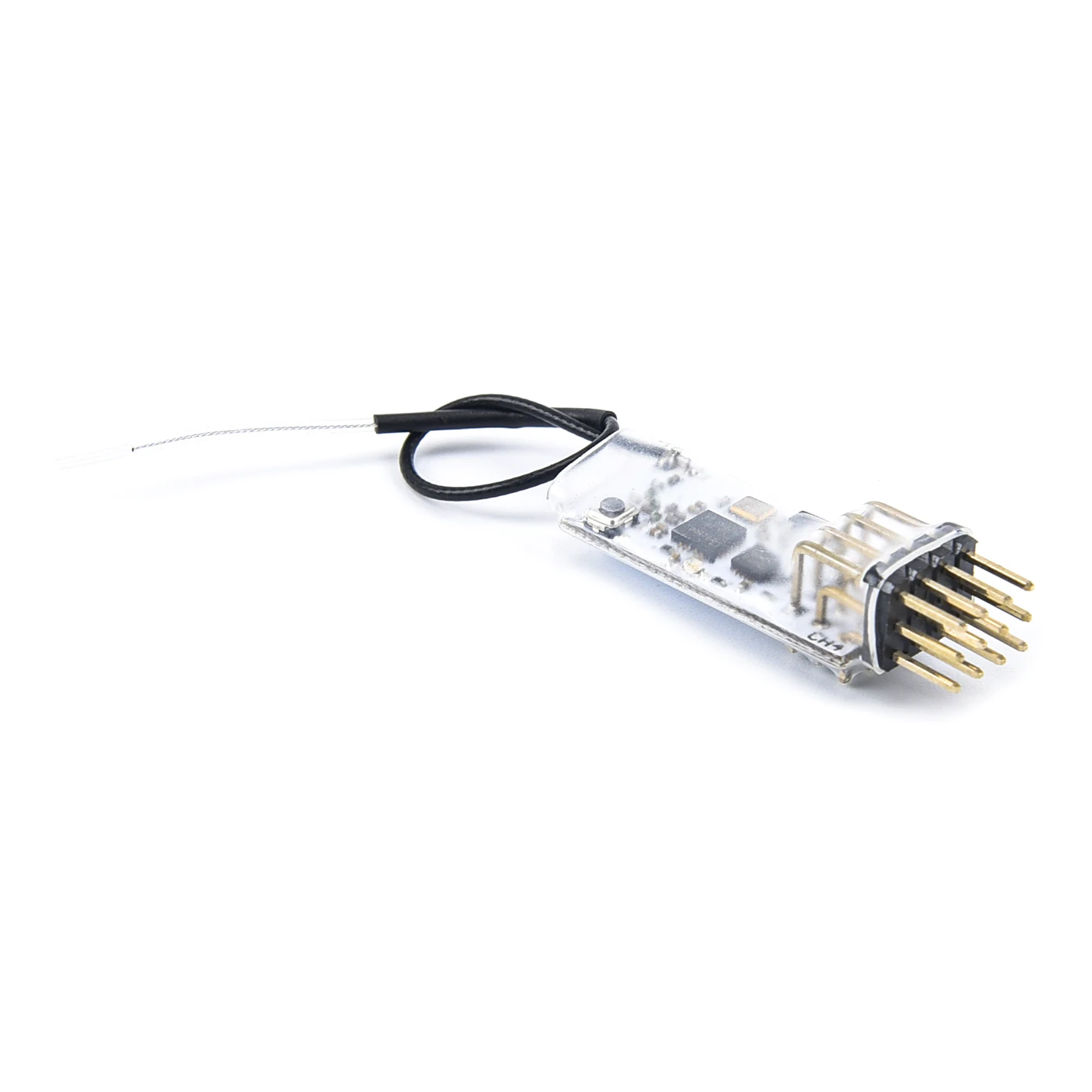

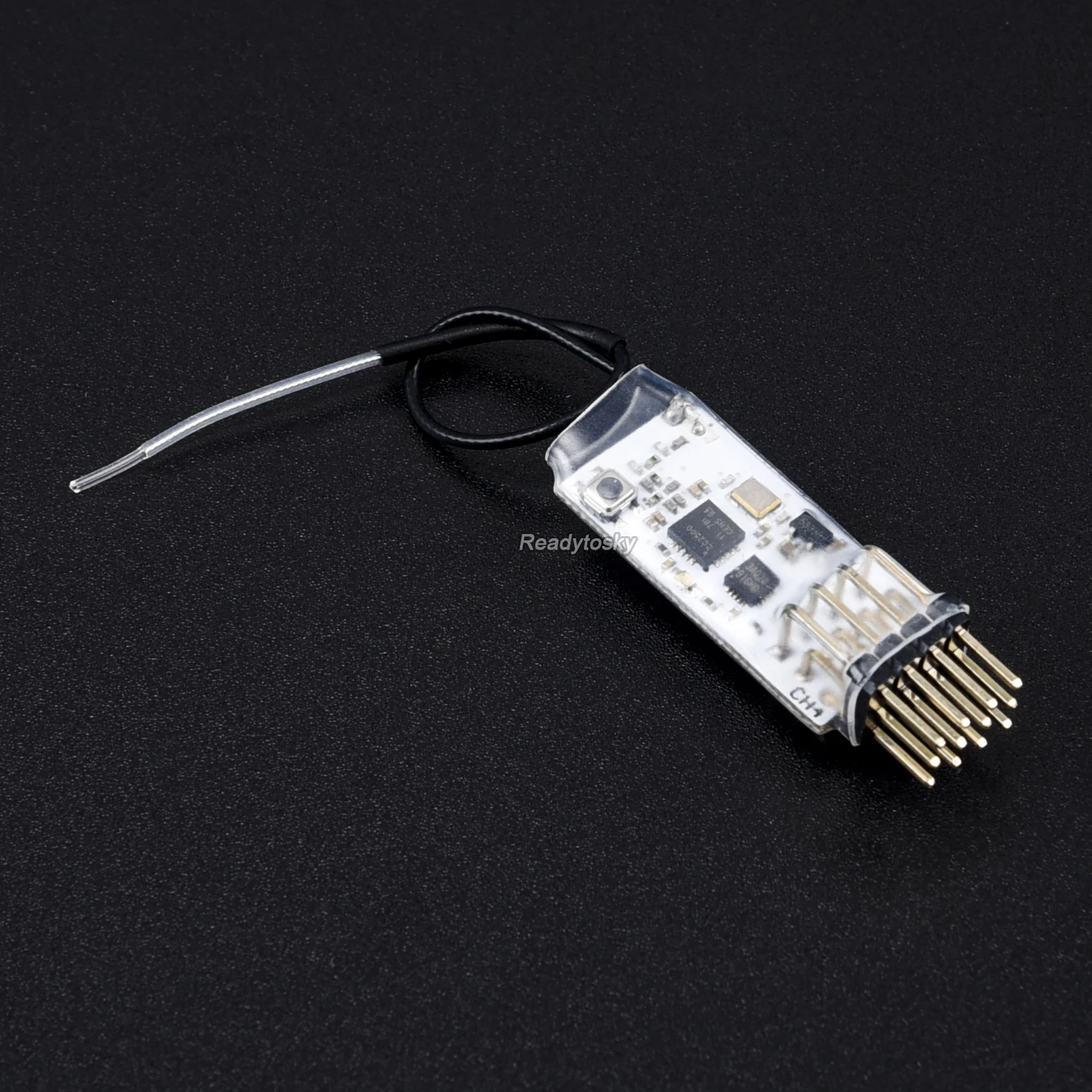

Frsky 4CH Receiver:

Working frequency: 2400Mhz-2483. 5Mhz

Working mode: Frequeney-Hopping Spread Spectrum

Working voltage: 5V

Working current: <25mA (+8.0V)

Output channel: 4CH PWM

Size: 27.7* 12.7 * 10mm

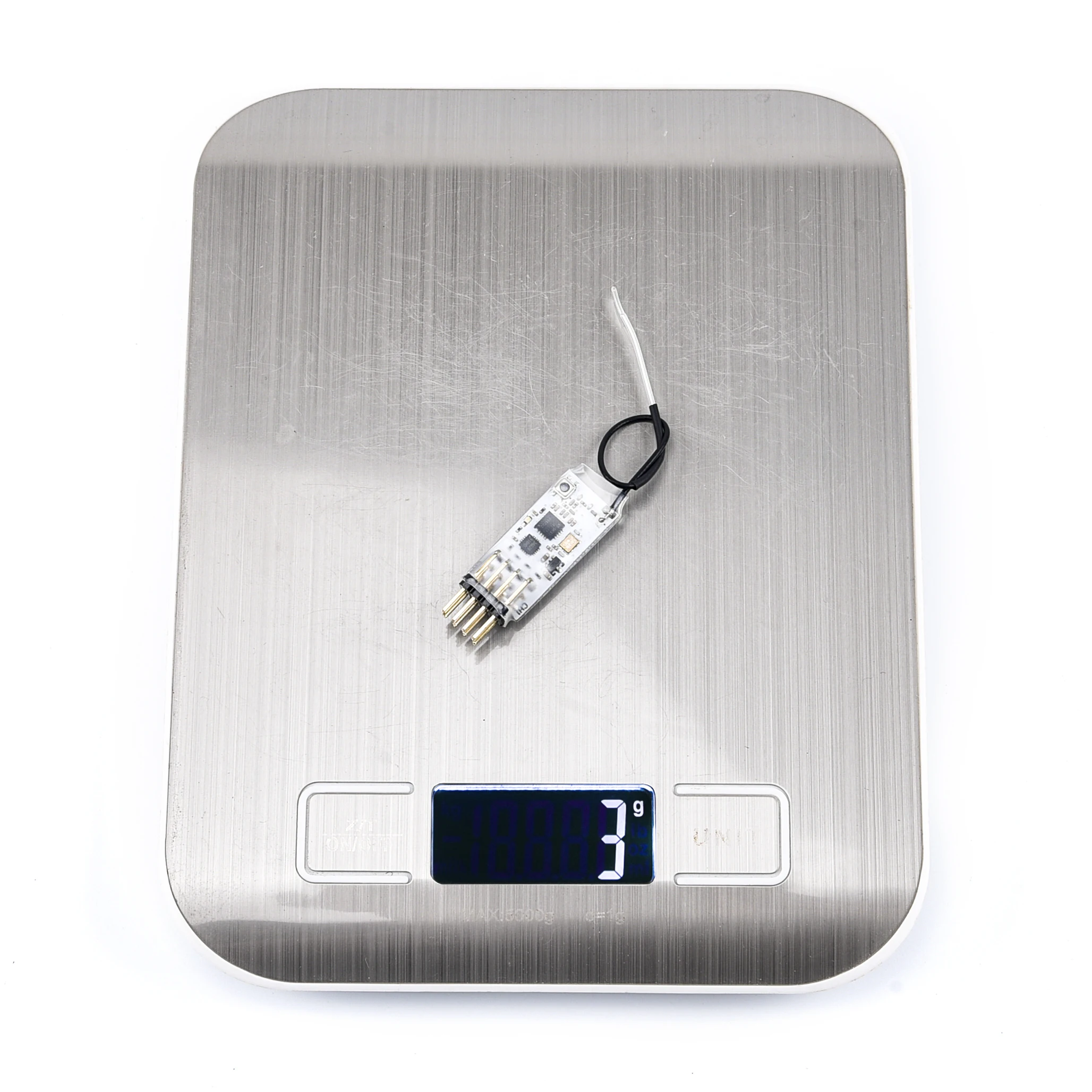

Weight: <1.2g (without pins) <2.4g (with pins)

Note: Weight with pins is related to soldering tin, between 2.0g-2.5g

Distance:

Futaba(14sg) >150 meters(ground) > 500 meters (air)

Frsky (X7) >250 meters(ground) > 650 meters (air)

Note: Distance testing is a very complicated matter, and it is related to weather, electromagnetic environment, remote control antenna height (direction), receiver antenna position (direction and height), etc. The distance parameters we provide are only for reference.

How to bind :

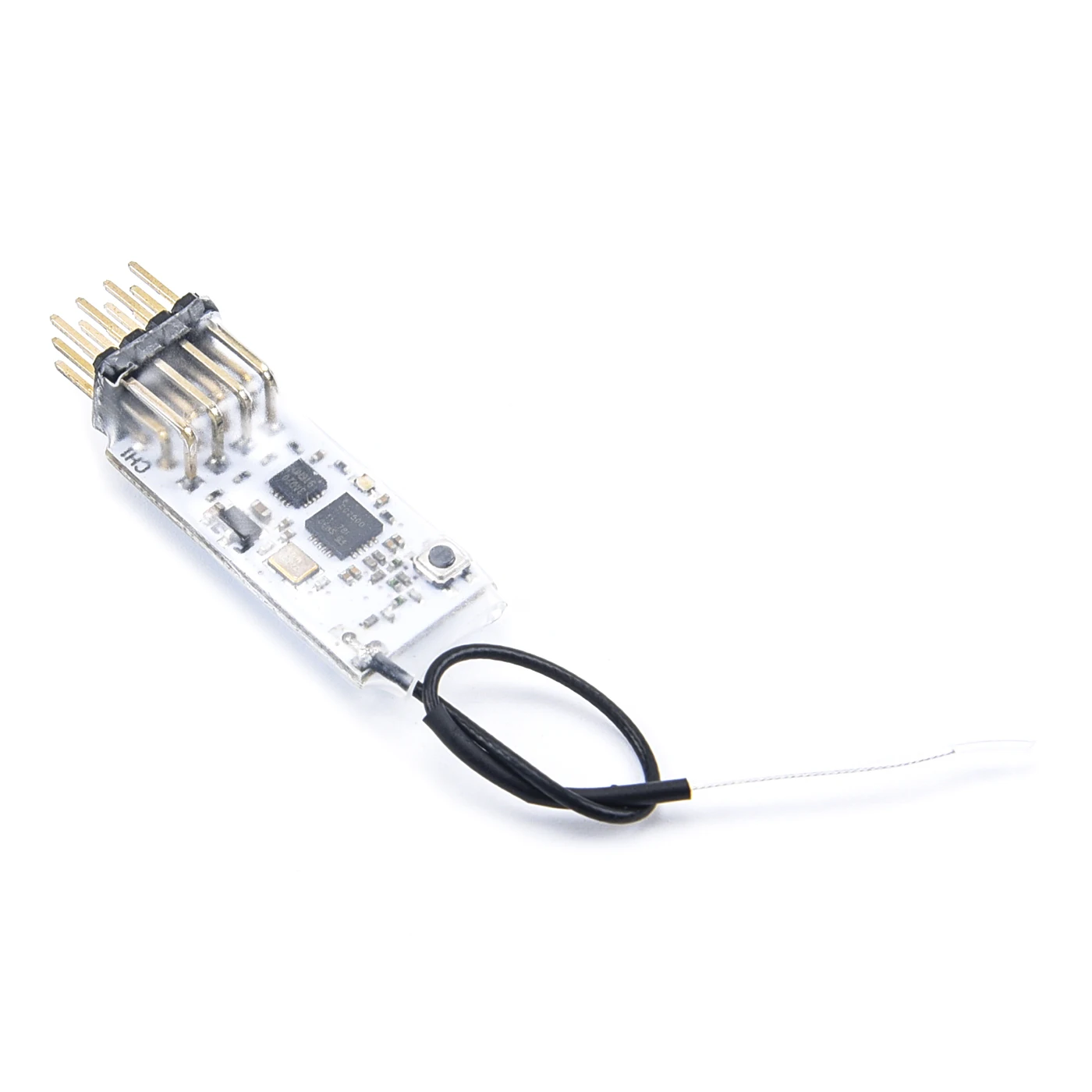

1. Power the receiver , the led flashes slowly, press the bind button for about 1 second, the led will flashes quickly which indicates the receiver is in binding mode

2. Power on the remote control
A. Futaba double-leaf remote control (board control) choose S-FHSS system , (gun control) choose S-FHSS or S-FHSS NORM system

B.Frsky remote control select D8/D16 system, set to enter bind mode

C.Jumper remote control select frsky/frskyX system, set to enter bind mode

3. Receiver status

A.Futba double leaf mode: The indicator light changes from flashing quickly to a steady light, and the code is successfully matched

B. Frsky /jumper mode:

The indicator light changes from fast flashing to slow flashing, the remote control exits Bind mode, the indicator light is always on, and the code matching is successful.

Signal output:

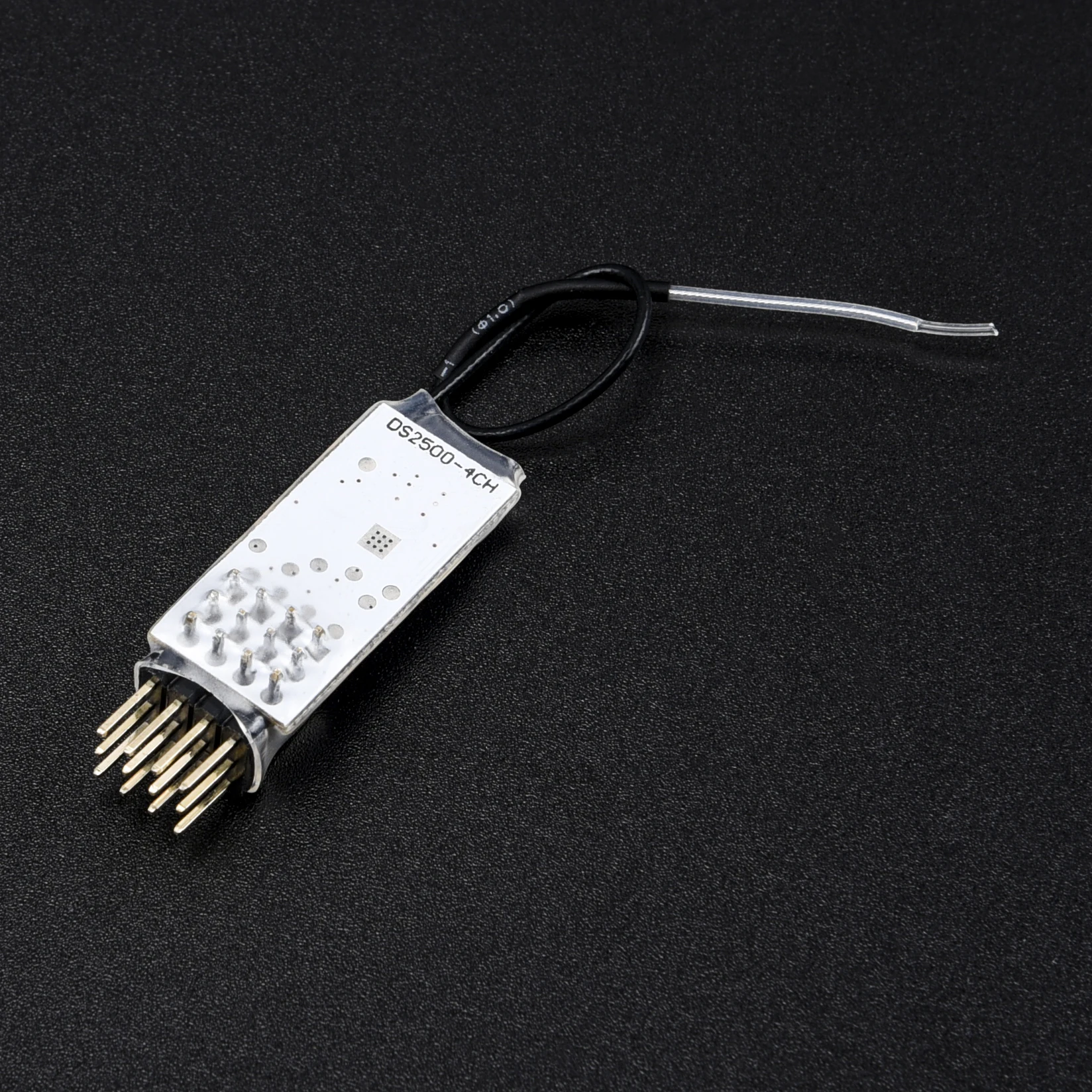

CH1-AIL (Aileron) CH2-ELE (Elevation) CH3-THR (Throttle) CH4-RUD (Direction)

Note:

Jumper remote control T8SG binding:

Since T8SG uses the linking channel in the normal working mode of Frsky D8, to link the jumper in Frsky D8 mode, you need:

1. First turn on the remote control to enter the binding mode

2. Power on the receiver and press the bind button to enter the binding mode

3.If the receiver bind successfully , the led light will change from fast flashing to slow flashing

4.The remote control exits the binding mode, the LED on the receiver always on and this indicates binding successfully

Note:

First Generation: NONEU can be used

Second generation: ACCST unavailable

Three generations: ACCESS is not available

There are three generations of Frsky protocols, only the first generation remote control of D8.D16 can be used, the second and third generations of D8 and D16 can not be used.

Package including :

1piece 2.4G 4CH Mini receiver
