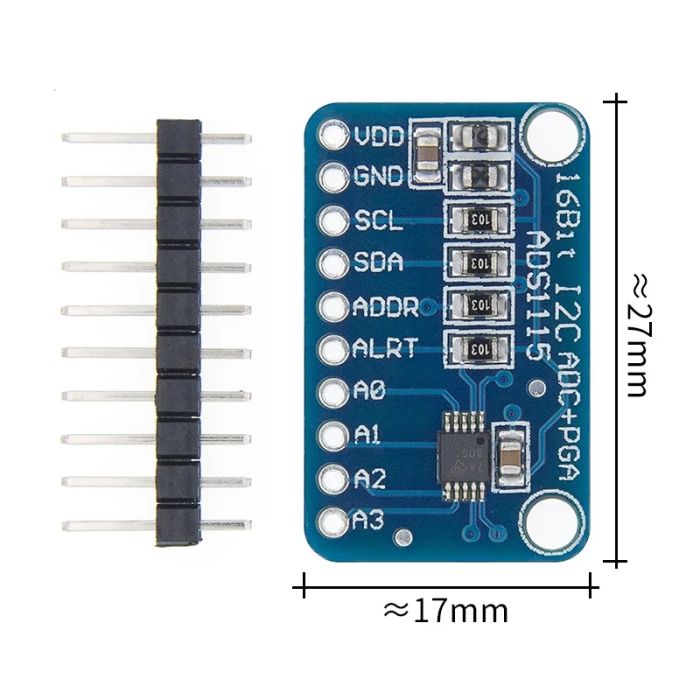

16 Bit I2C ADS1115 Module ADC 4 Channel with Pro Gain Amplifier

Special Price $1.87 Regular Price $5.67

In stock

SKU

1005006074781549

Description

ADC Bit rate: 16 Bit

Interface Type: I2C

Channels: 4 Channel AN0 AN1 AN2 AN3 or 2 differential inputs

Input voltage: 2.0-5.5v

Channel input voltage :0-VDD

Continuous Mode: Only 150μA

Single-Shot Mode: Auto Shut-Down

PROGRAMMABLE DATA RATE:8sps-860sps

Input range programmed control, 7 types input ranges:

-0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V,

-2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V

I2C 7-bit addresses between 0x48-0x4B

Size:18mm*28mm

Applications

Portable instrumentation

Consumer goods

Battery monitoring

Temperature measurement

Factory automation and process controls
