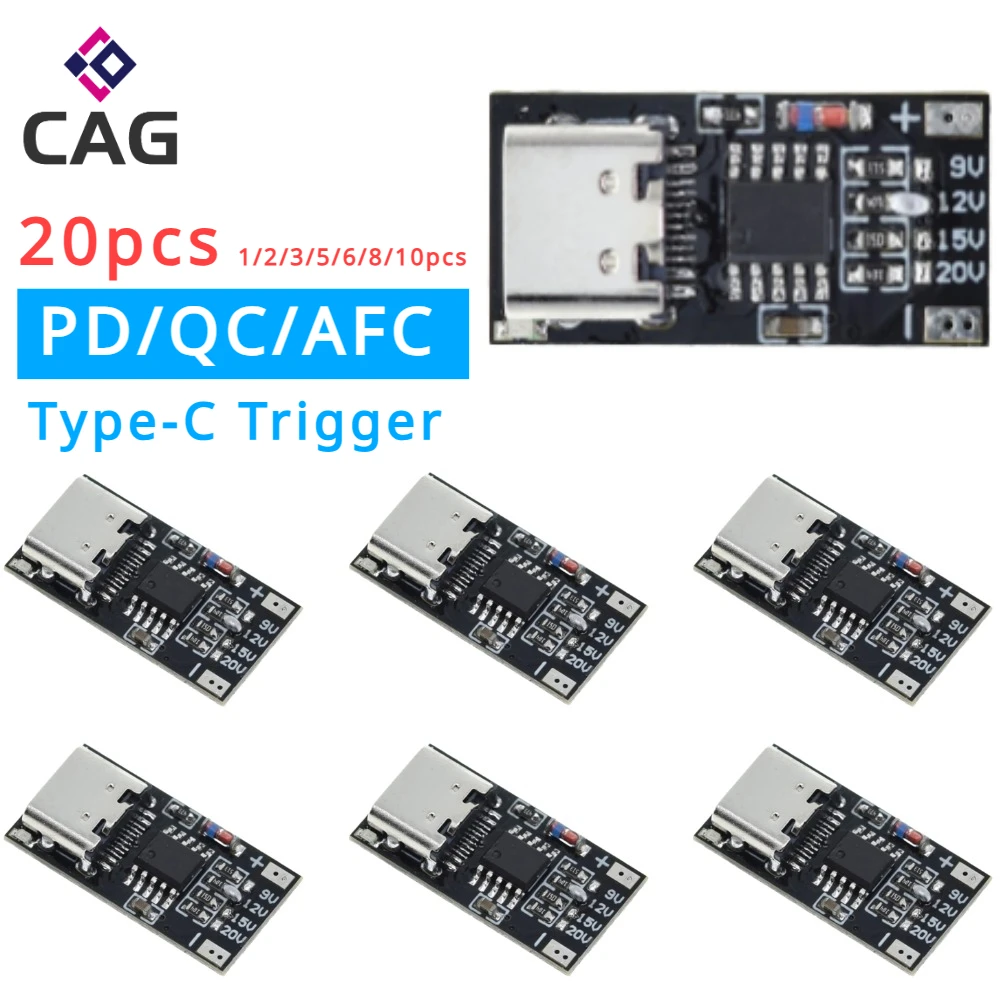

PD/QC/AFC Type-C Fast Charging Voltage Protocol Trigger Board 9V 12V 15V 20V USB Boost Cable Type-C Decoy Board PPS/QC4+ FCP AFC
Feature:
1. Multifunctional Fast Charging Trigger Board: This PD/QC/AFC Type-C USB fast charging trigger board can be used as a DC power supply, supporting 9V/12V/15V/20V USB boost line Type-C charger, aging dormitory power outage router modem adapter.
2. Versatile Charging Capabilities: The board allows users to trick the voltage of fast charging chargers/power banks and use them as a direct current power supply source. For instance, it enables fast charging power banks to output 9V or 12V to power routers, modems, and other compatible devices.
3. Easy Conversion to Type-C Interface: With this board, users can easily convert some traditional DC-powered devices to ones that use a TYPE-C interface. This feature allows users to power older devices with modern and more efficient charging methods.

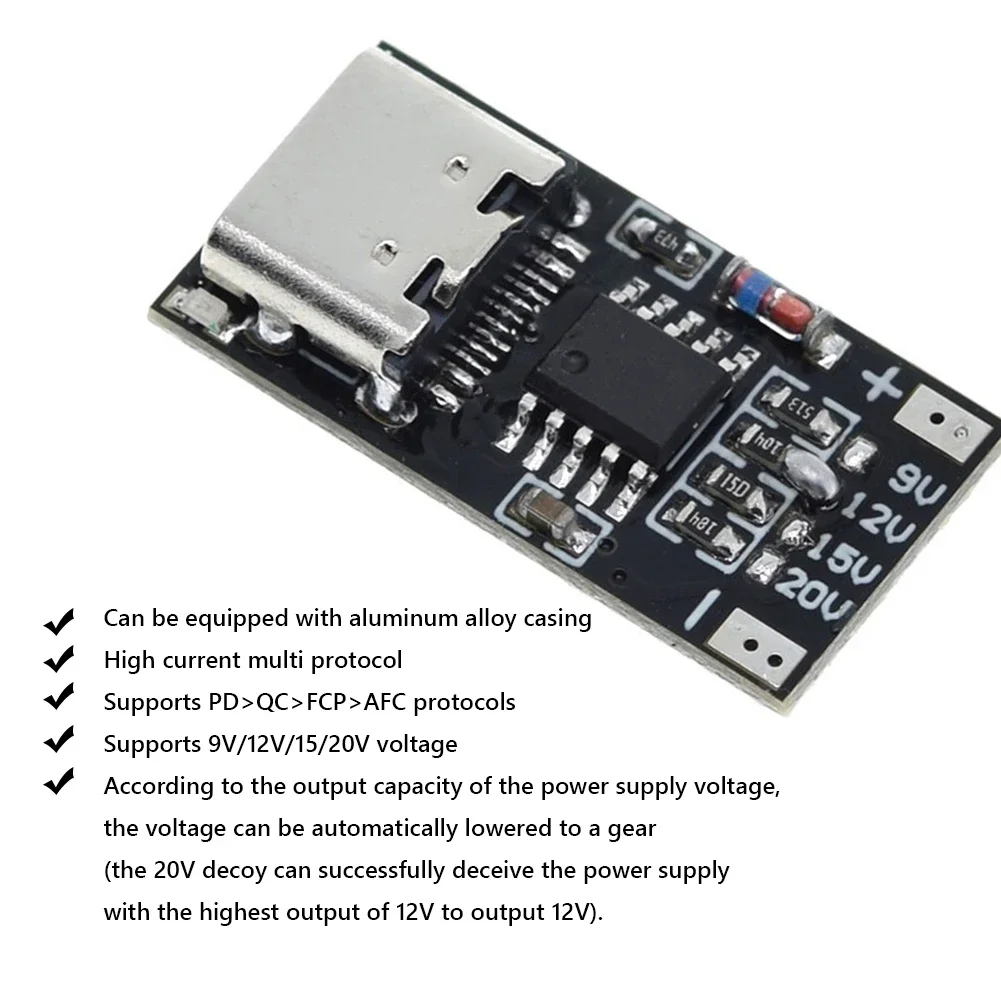

4. Multiple Protocol Support: The board supports various fast-charging protocols, such as PD3.0/2.0, PPS/QC4+, QC3.0/2.0, FCP, and AFC. These protocols enable faster charging times and more efficient power delivery to compatible devices.
5. Essential Home and Office Accessory: The board is an essential accessory for homes and offices, especially in areas prone to power outages. It guarantees uninterrupted power supply to critical devices like routers and modems, ensuring seamless internet connections even during blackouts.

Specification:
Origin: Mainland China
Product color: Black
Product material: PCB
Product quantity: 1pcs/5pcs/10pcs (optional)
Power supply method: Use a charger with a fast charging protocol or a power bank TYPE-C interface for power supply
Output mode: fixed 9/12/15/20V four gears
Output current: Maximum support of 5A, actual output current/power determined by charger and load

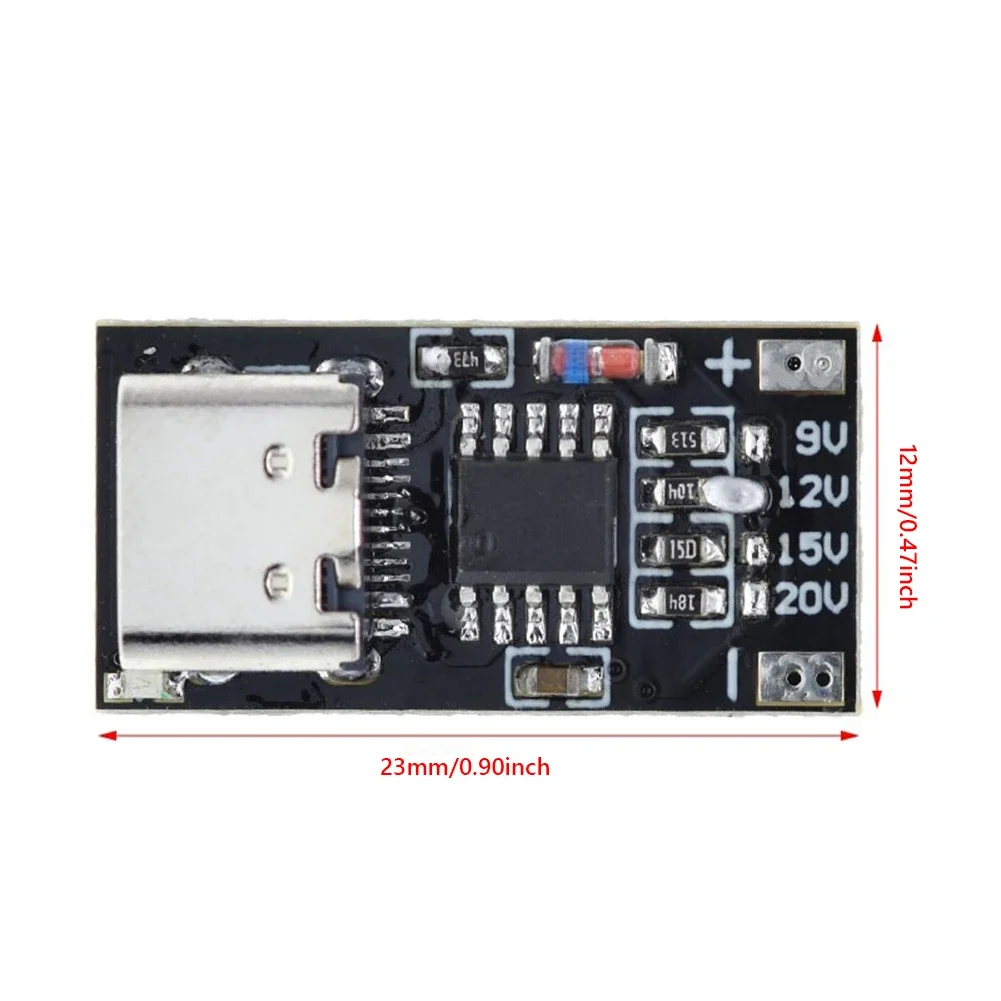

Product size: About 23x12mm/0.91x0.47inch
Product weight: 4g
Precautions:

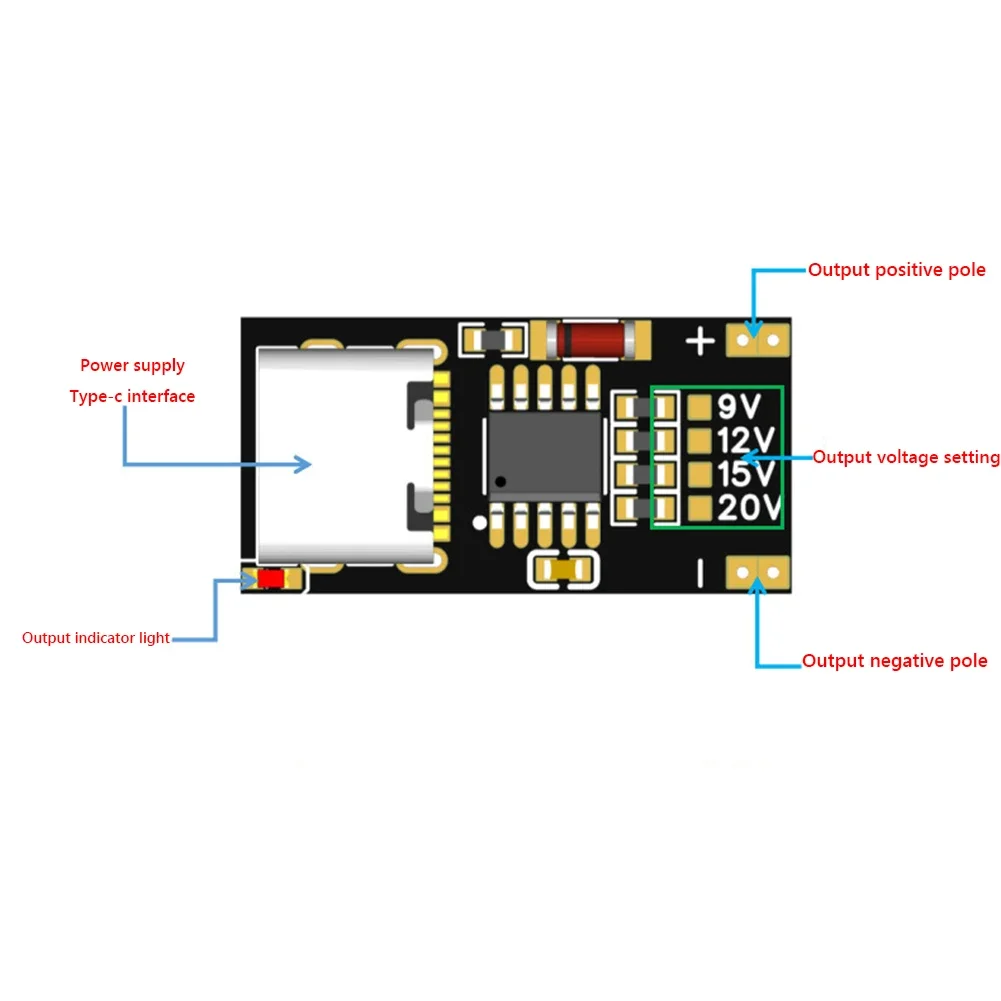

1. Fixed 9/12/15/20V four gears, what voltage is needed, just short circuit the corresponding solder pads.
2. For example, if you set a trap of 20 volts, but your charger only has a maximum of 9 volts, it will automatically downshift to trap the output of 9 volts.
3. The maximum support is 5A, and the actual output current/power is determined by your fast charging charger and load.
4. Mobile phone chargers must first support fast charging such as PD/QC in order to trick out voltage.
